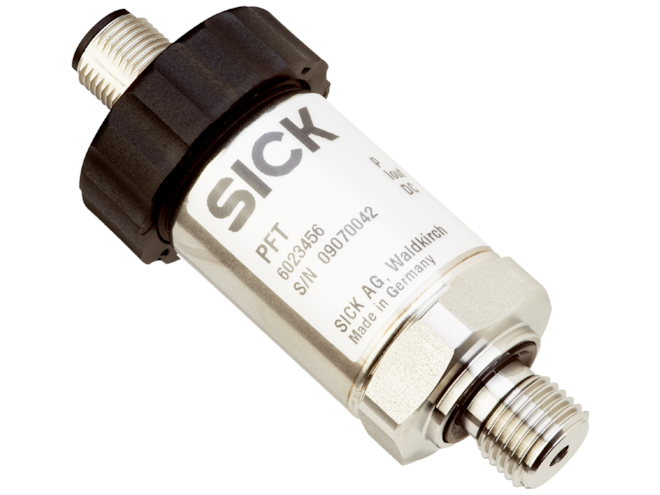

SICK PFT Series Pressure Sensor

Current or voltage output signal sensor with up to 600bar pressure range, with various units of measurement. From -40 up to 150°C temperature ranges.

This model has 701 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • PFT Series
Highlights...

Features

  • Output signal(s):
    • 4 to 20mA, 2-wire
    • 0 to 10V, 3-wire
    • 0 to 5V, 3-wire
  • Measuring range(s):
    • Gauge: 0 up to 600bar
    • Absolute: 0 up to 25bar
    • Compound: –1 up to 30bar
  • Unit variants: bar, MPa, psi and kg/cm2
  • Process temperature range(s): -40°C min, up to 150°C max
  • Accuracy: ≤ ± 0.5% of the span / ≤ ± 0.25% of the span
  • Enclosure rating: IP65 / IP67 / IP68

The SICK PFT Series Pressure Sensor is an electronic pressure transmitter used for precision measurement of pressures in liquids and gases. This device series is well suited to demanding measurement tasks in industrial applications, with a durable IP rated enclosure with high shock and vibration resistance. Variants feature bar, psi, MPa, and kg/cm2 units of measurement, with ranges from compound, to gauge ranges up to 600bar. PFT Series sensors offer extended temperature ranges, enhanced measurement accuracy, or flush-mounted membrane.
