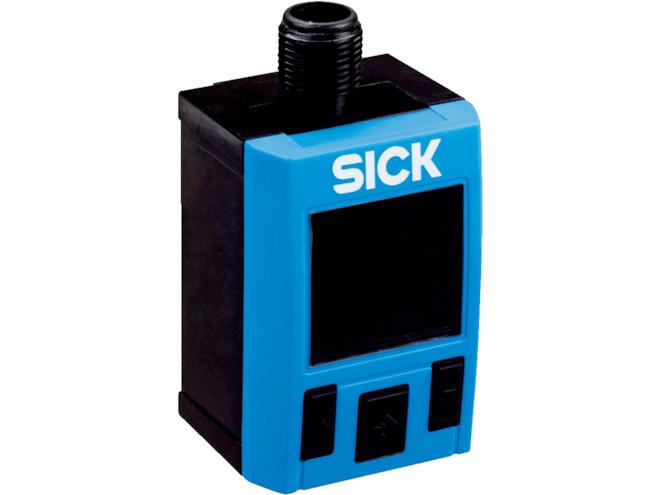

SICK PAC50 Series Pressure Sensor

Digital and analog output pressure switch, optional IO-Link interface. Traffic light function for pneumatic monitoring. Large display for readability at a distance.

This model has 76 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • PAC50 Series
Highlights...

Features

  • Interface(s): 2x digital outputs
    • Optional analog output, IO-Link
  • Measuring range(s): -1 up to 10bar (gauge)
  • Pressure units: bar
  • Operating range: 0 to 60°C
  • Accuracy: within 1.5% of span
  • Large bi-color display
  • IP65 / IP67 rated enclosure

The SICK PAC50 Series Pressure Sensor is an electronic pressure switch that offers an improved air monitoring solution, with traffic light functionality. Each unit integrates a large bi-color display for easy identification at a distance when pressure falls within the target range. Large function keys and a user-friendly menu offer ready navigation and adjustment. The PAC50 Series sensors come with up to two digital switching outputs, as well as an optional analog output, maximizing on adaptability to various application requirements. Certain variants can also be configured with an IO-Link interface, through which a controller or PLC can directly pass device parameters to the sensor during adjustment or replacement. The PAC50 is ideal for use in industrial environments due to its waterproof housing with an IP65 and IP67 enclosure rating.

Applications

  • Compressed-air monitoring and measurement in machines and systems
  • Air and dry, non-corrosive gases
  • Vacuum monitoring in handling and robotics applications
