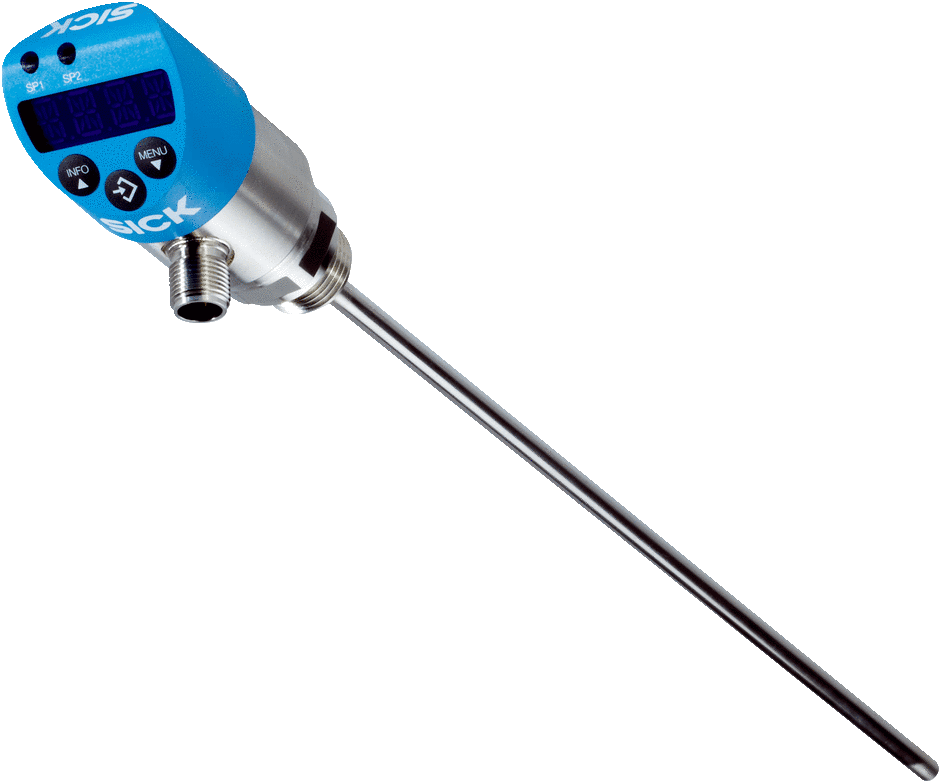

Sick 6065885 / TBS-1NES21506CM Temperature Sensor

Temperature sensor for industrial liquids and oils. IO-Link/PNP + 4 to 20mA outputs. –20 to 120°C range. 150mm / 6mm insertion length/probe diameter. Compression fitting G ½ A connection.

$740.00
Effective August 21st, 2026 SICK has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • TBS-1NES21506CM
  • 6065885
Highlights...

Features

  • –20 °c to +120 °c temperature measuring range
  • ≤ ± (0.15 °c + 0.002 |t|) accuracy of sensor element
  • Response time t50: ≤ 5 sresponse time t90: ≤ 10 s response time
  • Compression fitting g ½ a process connection
  • 150 mm / 6 mm insertion length/diameter of probe
  • Copper seal
  • Io-link/pnp + 4 ma to 20 ma output signal
  • M12 round connector x 1, 4-pin connection type
  • Ip65, ip67 enclosure rating
