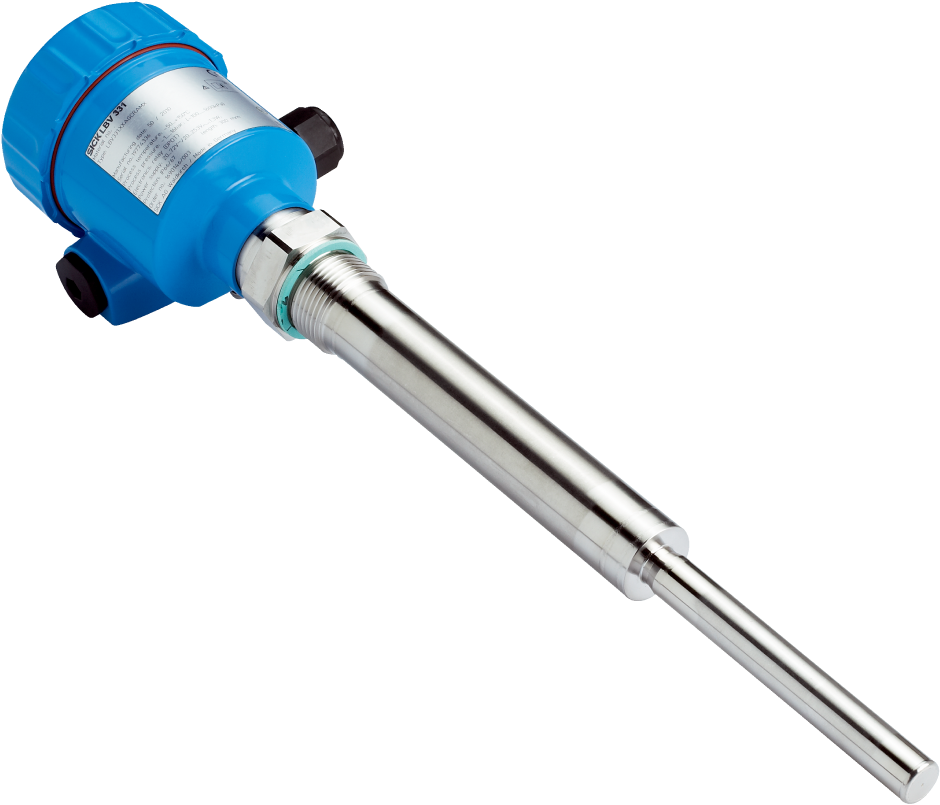

Sick 6054264 / LBV331-LXAGDTAMX0300 Level Sensor

1 x PNP/NPN output level sensor. 300 mm probe length, with Aluminum housing material. –50 to 150°C range, with G 1½ A PN 16 connection.

Retired products cannot be ordered
Effective August 21st, 2026 SICK has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • LBV331-LXAGDTAMX0300
  • 6054264
Highlights...

Features

  • G 1½ a PN 16 process connection
  • 1 x pnp/npn output signal
  • 300 mm probe length
  • Aluminum housing material
  • M20 x 1.5 connection type
  • –50 °c to +150 °c process temperature
  • Ptb 17 ATEX 1003 x / ATEX II 1/2g, 2g ex db IIC t6…t1 ga/gb, gb authorizations
View other configurations.
