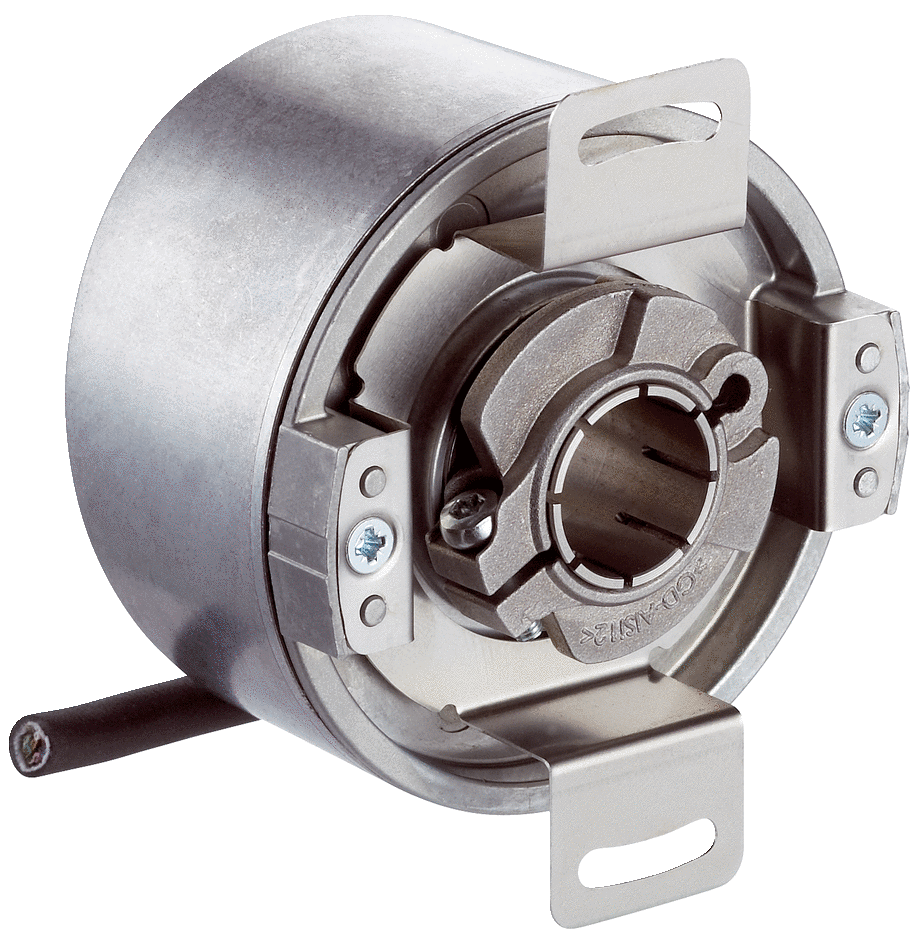

Sick 1100719 / DFS60B-TJPZ00S07 Encoder

High-resolution incremental encoder with 4.5 V ... 32 V, TTL, HTL, programmable interface.

$1,210.00
Effective August 21st, 2026 SICK has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • DFS60B-TJPZ00S07
  • 1100719
Highlights...

Features

  • Through hollow shaft 5/8″ mechanical design
  • 4.5 v to 32 v, ttl, htl, programmable communication interface
  • Cable, 8-wire, with male connector, m12, 8-pin, universal, 0.5 m connection type
  • 10,000 pulses per revolution
  • Dfs60b-tjpz00s06 (1100135) cable, universal, 0.5 m with m12 8-pin, additional accessories included with delivery, customized label:6028369 m12-8 pin female connector2076219 8 mm collet2076220 10 mm collet2076221 12 mm collet2076222 14 mm collet2076223 15 mm colletadditional empty label to note the programming settings specialty
View other configurations.
