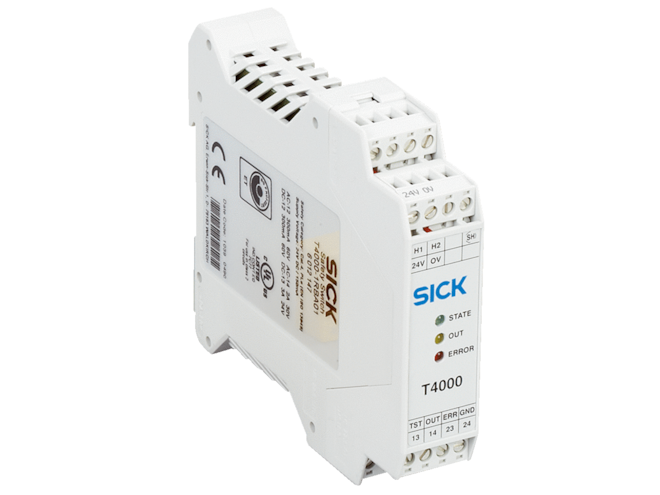

SICK T4000 Standard Series Safety Switch

RFID transponder switch, 10mm response range, with high manipulation protection and up to Pl e and Cat. 4 performance.

This model has 5 variants.
Effective August 21st, 2026 SICK has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • T4000 Standard Series
Highlights...

Features

  • Sensor principle: RFID
  • Actuator coding level: high coding level (EN ISO 14119)
  • Sensing range: up to 10mm
  • Type of output: relays
  • LED status indicator
  • Connection type:
    • M8 plug connector, 3-pin
    • Cable
    • Plug-in terminals
  • PL e / Cat. 4 (EN ISO 13849)

The SICK T4000 Standard Series Safety Switch is a transponder sensor that offers a high level of prevention against tampering due to the individually coded actuators. It is comprised of several components, including a sensor, coded actuator and an evaluation unit. The sensor is compactly design for fast and easy mounting. Evaluation takes place centrally in the control cabinet. The T4000 Direct Series features a high level of machine availability due to tolerance for door misalignment, shocks and vibrations. An ATEX rated variant is available for Zone 2 hazardous locations, please contact a Motion World engineer for more details.

Applications

  • Monitoring of safety doors and removable guards
  • Applications requiring a high standard of hygiene
  • Applications where precise guidance of the safety door is not possible
  • Machinery and systems where vibrations occur
