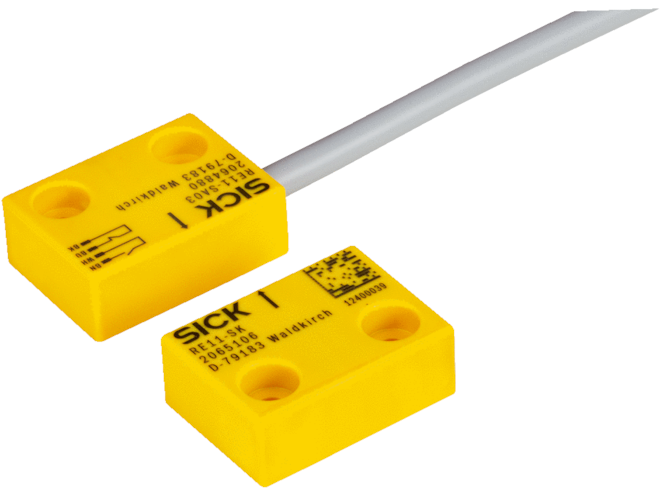

SICK RE1 Series Safety Switch

Compact safety switch with 7mm response range and magnetic actuation. NO and NC reed contacts, PL e performance.

This model has 11 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • RE1 Series
Highlights...

Features

  • Actuator coding level: Low coding level (EN ISO 14119)
  • Response range: up to 7mm
  • Type of output: reed contacts
  • NO contacts: 1 / 2
  • NC contacts: 1 / 0
  • Connection type(s):
    • Cable with M8 male connector, 4-pin
    • Plug connector, M8, 4-pin
    • Cable with M12 male connector, 4-pin
    • *Flexi Loop-compatible safe series connection available
  • PL e (EN ISO 13849)

The SICK RE1 Series Safety Switch operates through coded magnetic actuation of the complementary NC/NO reed contacts or equivalent N/O reed contacts. These switches are used in areas where a high level of contamination occurs. They are simple to clean, thereby enabling high standards of hygiene. Their principle of operation enables greater tolerances, making them well-suited for applications where precise guidance of guards is difficult.

Applications

  • Monitoring of safety doors and removable guards
  • Applications requiring a high standard of hygiene
  • Applications where precise guidance of the safety door is not possible
