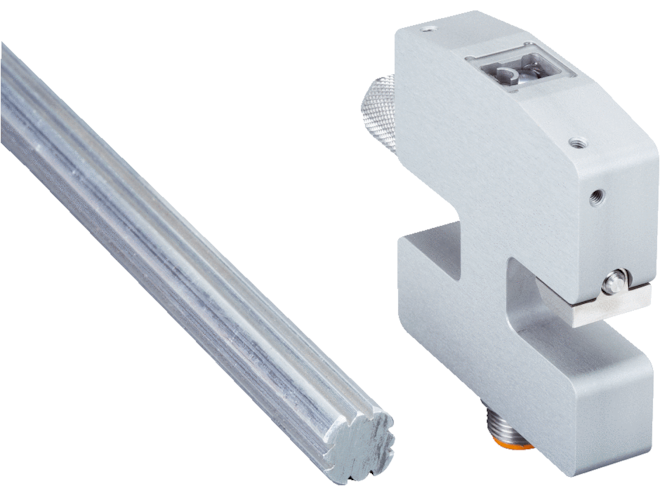

SICK RS10 Series Contrast Sensor

Contrast sensor with maximum 13mm sensing distance. Individual threshold controlled register, for up to 18 different marks. LED white light.

This model has 2 variants.
Effective April 28th, 2025 SICK has added a 7.7% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • RS10 Series
Highlights...

Features

  • Sensing distance: 13mm
  • Light type(s): LED, white
  • Reading field: 0.8 x 3mm
  • Switching output: PNP, PNP | push-pull PNP / NPN
  • Metal housing
  • Male connector M12, 8-pin
  • Individual threshold adjustment
    • up to 18 marks of different colors
  • Dual sensors enable double column detection

The SICK RS10 Series Contrast Sensor is designed especially for the detection of print marks with low contrast, or processing register marks with various colors, thanks to the individual threshold adjustment feature. The RS10 Series' embedded register control system can handle up to 18 marks. Dual sensors enable detection of double column marks. Installation is quick and efficient via single screw mounting, with fast teach-in for minimal system downtime. Units utilize a 0.8 x 3mm white LED light to provide accurate readings at high speeds.

Applications

•Length and side register control in printing machines
• Double columns of marks (using dual sensors)
• Cut-off control application
• Rectangular marks
• Multi colored marks, no start code
