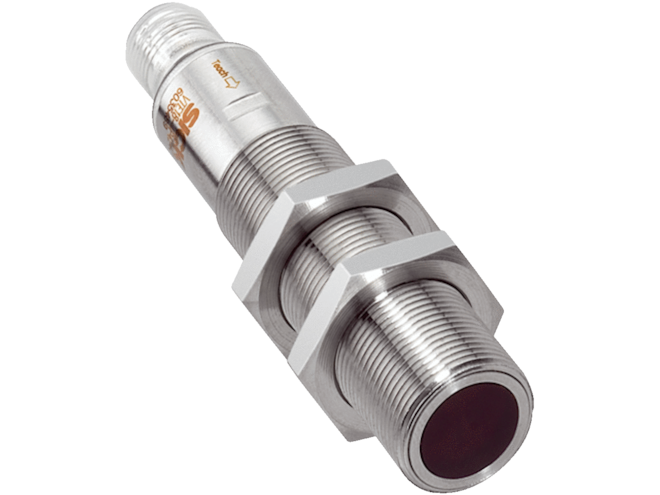

SICK V18V Series Photoelectric Sensor

Stainless steel housing, chemical and pressure clean resistance. Max 20m range with through-beam models. Optional touch-teach adjustment with locking function.

This model has 16 variants.
Effective April 28th, 2025 SICK has added a 7.7% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • V18V Series
Highlights...

Features

  • Functional principle(s):
    • Photoelectric proximity sensor
    • Photelectric retro-reflective sensor
    • Through-beam photoelectric sensor
  • Functional principle detail(s):
    • Energetic
    • Dual lens
    • Background suppression
  • Light source: LED
  • Light type: visible red, infrared
  • Adjustment: none, teach-in button (dependent on model)
  • Sensing range(s): up to 20m (through-beam models only)
  • Switching output: NPN, PNP
  • DC supply voltage
  • Stainless steel housing, IP67/68/69K rated
  • Extended temperature range: 85°C (long-term), 100°C / 15 min. (short-term)
  • Certifications: ECOLAB, JohnsonDiversey

The SICK V18V Series Photoelectric Sensor is available in proximity, retro-reflective, and through-beam configurations. Housing is constructed with stainless steel, with an IP68 and 69K rating. Laser-etched part numbers ensure reliable identification over time and in harsh environments. The V18V Series is ECOLAB and JohnsonDiversey certified, suitable for wash down applications, with chemical and pressure cleaning protections for all sensor components. The standard operating temperature is rated for up to 85°C, with the ability to operate at up to 100°C for a maximum of 15 minutes. The optional touch (smart) teach-in button offers easy adjustment and sensor lockability. Numerous sensing ranges are available, with a maximum of up to 20m with through-beam variants.
