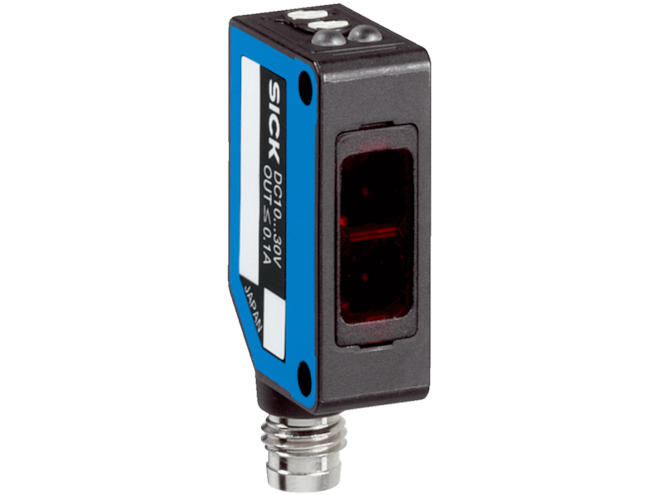

SICK W100 Laser Series Photoelectric Sensor

Miniature photoelectric sensor with Class 1 laser light source, wide sensing range, and various detection principles. Potentiometer adjustment method.

This model has 24 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • W100 Laser Series
Highlights...

Features

  • Functional principle(s):
    • Photoelectric proximity sensor
    • Photoelectric retro-reflective sensor
    • Photoelectric through-beam sensor
  • Functional principle detail(s):
    • Energetic
    • Dual lens system (min. distance to reflector)
  • Light source: Class 1 laser
  • Switching output(s): NPN, PNP
  • Switching mode: light/dark
  • Adjustment: potentiometer

The SICK W100 Laser Series Photoelectric Sensor is a line of Class 1 laser sensors compatible with standard detection principles, with variants including proximity, through-beam, and retro-reflective sensors. Light and dark switching modes are available, with standard potentiometer adjustment. The housing design of the W100 Laser Series includes M3 threaded mounting holes that permit straightforward, inexpensive mounting.
