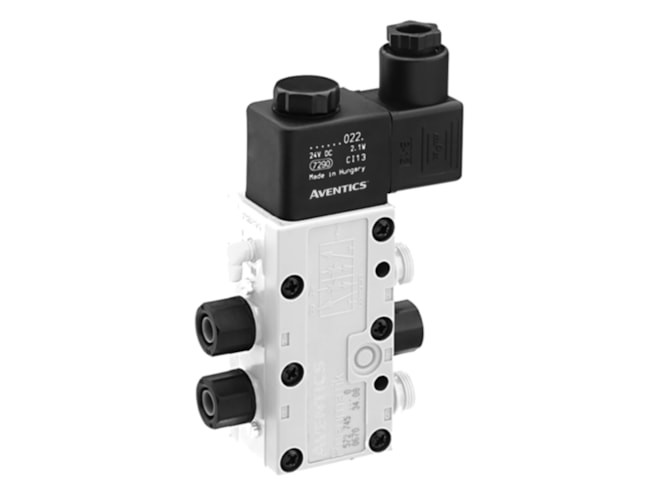

Aventics V740-5/2SS-024 Electric and Pneumatic Actuated Directional Valve | Electric and Pneumatic Actuated Directional Valves | Motion World

Aventics V740-5/2SS-024 Electric and Pneumatic Actuated Directional Valve — Aventics-V740-5/2SS-024

$107.45

Part Numbers

V740-5/2SS-024
R432016658

Highlights...

V740-5/2SS-024
By Aventics
FREE Shipping on orders of $1,000 or more
Call for availability

Features

Activation: Electrically
Compatibility index: 13, 14
Compressed air connection output: 3/8″
Flow L M: 700 l/min
Housing Material: Polyarylamide, Polyoxymethylene
Industry: Industrial
Manual Override: with detent, without detent
Max Working Pressure: 10 bar
Min Working Pressure: 1.4 bar
Operating Voltage: 24 V AC
Seat Seal Type: Soft seal
Switching principle: 5/2, with air spring return

View other configurations.

AVENTICS 5/2-directional valve, Series 740 R432016658
