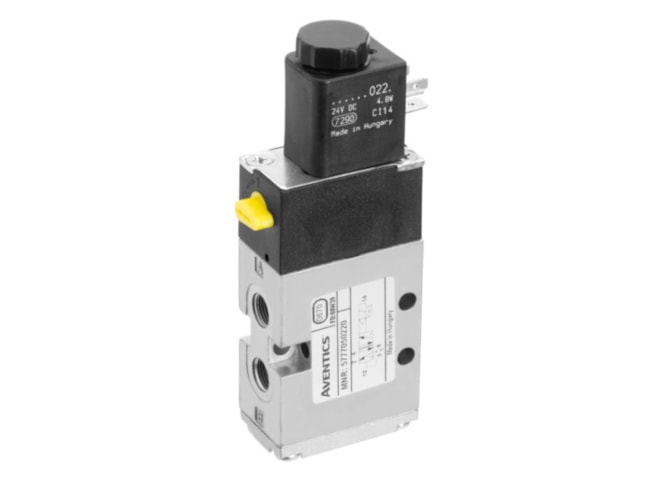

Aventics CD04-5/2XX-AR-NONE-I-M010-M010 Electric and Pneumatic Actuated Directional Valve

Single valve, Spool valve. View other configurations.

Aventics CD04-5/2XX-AR-NONE-I-M010-M010 Electric and Pneumatic Actuated Directional Valve — Aventics-CD04-5/2XX-AR-NONE-I-M010-M010

Call for pricing

Part Numbers

CD04-5/2XX-AR-NONE-I-M010-M010
5777005302

Highlights...

CD04-5/2XX-AR-NONE-I-M010-M010
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compatibility index: 14
Compressed air connection output: M10x1
Electrical Connection 2: EN 175301-803, form B
Flow L M: 900 l/min
Housing Material: Die cast zinc, Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: with detent
Max Working Pressure: 10 bar
Min Working Pressure: 3 bar
Seat Seal Type: Soft seal
Switching principle: 5/2, with spring return
Valve Configuration: Basic valve without coil
Valve Pilot: Internal
Dimension: 7.52x2.28x1.57 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series CD04 5777005302
