Aventics CD07 Series Electric and Pneumatic Actuated Directional Valve

Electrical, mechanical or pneumatically actuated directional valve. ATEX certification available.

This model has 211 variants.
Part Number
  • CD07 Series
Highlights...

Features

  • Activation:
    • Mechanical
    • Pneumatically
    • Electrically
  • Switching principle:
    • 3/2
    • 5/2
    • 2/2
    • 5/3
  • Actuating element:
    • Plunger
    • Roller
    • Hand lever
    • Lever
    • Button
    • Rotary lever
    • Pedal
  • Flow rate: 900 to 1400l/min
  • Pressure rating: 10bar max
  • Durable design
  • Assembly on base plate
  • Suitable for extreme ambient temperatures
  • Resistant to voltage fluctuations
  • ATEX version available

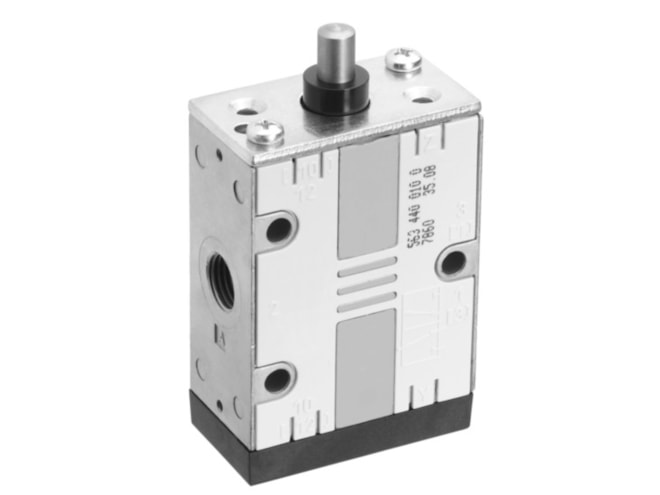

The Aventics CD07 Series Electric and Pneumatic Actuated Directional Valve consists of various spool valves and durable die-cast zinc housing. The electrical, pneumatic, or mechanical actuation(roller, lever, pedal, or plunger) make the CD07 ideal for applications in harsh environments.
