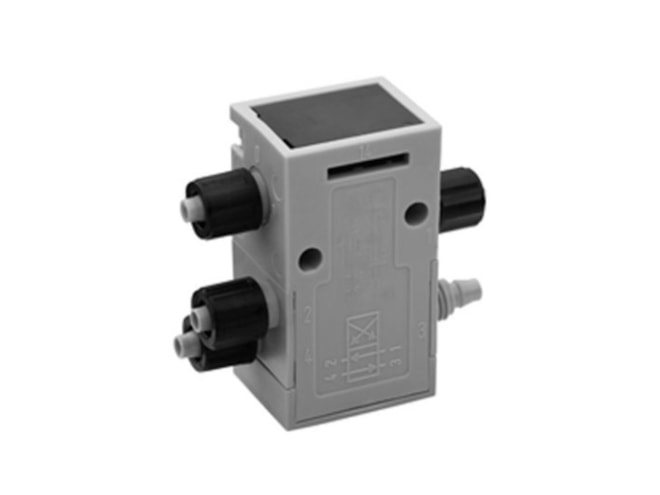

Aventics 840 Series Electric and Pneumatic Actuated Directional Valve

Directional control valve with up to 200 l/min flow rating, 1.5 to 10bar working pressure. The rugged polyoxymethylene enclosure offers high corrosion resistance.

This model has 34 variants.
Part Number
  • 840 Series
Highlights...

Features

  • Activation:
    • Electrical
    • Pneumatic
  • Flow rate: 200 l/min (depending on variant)
  • Pressure range: 1.5 to 10 bar (depending on variant)
  • Switching principle:
    • 4/2, double solenoid
    • 4/2, with air spring return
  • Compressed air connection type:
    • Threaded
    • Push-in fitting
  • Compressed air connection size:
    • 1/4 in NPTF
    • Ø 6 mm
  • Housing material: polyoxymethylene
  • Manual override: with detent
  • Base plate assembly and block assembly possible
  • Versions also available with UL and ATEX coils
  • Operating temperature: -15 to 50°C
  • Operating voltage:
    • VAC: 24, 110, 220, 230
    • VDC: 6, 12, 24

The Aventics 840 Series Electric and Pneumatic Actuated Directional Valve features soft, abrasion-free diaphragm technology, with a robust design suited to all air qualities. The reliable operation is bolstered by a corrosion-resistant polyoxymethylene enclosure, providing a long service life in dusty and damp application environments.
