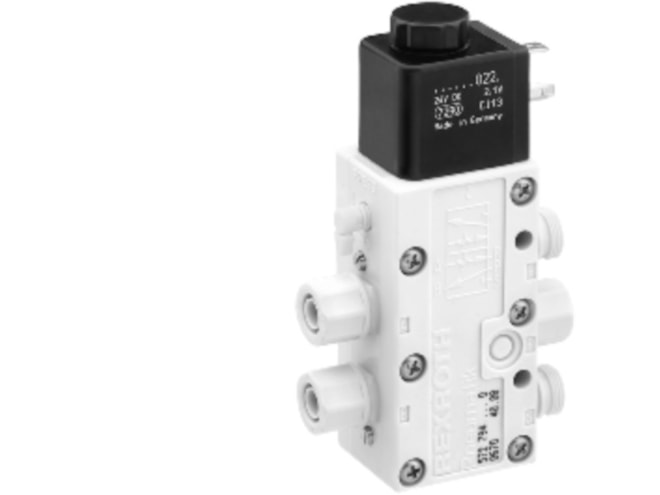

Aventics 740 Series Electric and Pneumatic Actuated Directional Valve

Directional control valve with up to 1100 l/min flow rating, 1.4 to 10bar working pressure. Rugged polyamide enclosure with high corrosion resistance.

This model has 76 variants.
Part Number
  • 740 Series
Highlights...

Features

  • Activation:
    • Electrical
    • Pneumatic
  • Flow rate: 700 to 1100 l/min (depending on variant)
  • Pressure range: 1.4 to 10 bar (depending on variant)
  • Switching principle:
    • 5/2, with air spring return
    • 5/2, double solenoid
    • 5/4, closed center
    • 5/4, pressurized center
    • 5/3, closed center
  • Compressed air connection type:
    • Internal thread
    • Plug-in with tube nut
  • Compressed air connection size:
    • 3/8 in
    • 5/16 in (Ø 8 mm)
    • Ø 10 mm
    • Ø 8 mm
  • Housing material:
    • Polyoxymethylene
    • Polyarylamide, Polyoxymethylene
    • Polyarylamide
  • Manual override:
    • With detent
    • Without detent
  • Base plate assembly and block assembly possible
  • Versions also available with UL and ATEX coils
  • Operating temperature: -15 to 50°C
    • -25°C cold-resistant version available
  • Operating voltage:
    • VAC: 24, 110, 220, 230
    • VDC: 6, 12, 24

The Aventics 740 Series Electric and Pneumatic Actuated Directional Valve features soft, abrasion-free diaphragm technology, with a robust design suited to all air qualities. The reliable operation is bolstered by durable, corrosion-resistant polymide enclosure, providing a long service life in dusty and damp application environments. Cold-resistant variants with reliable operation down to -25°C available.
