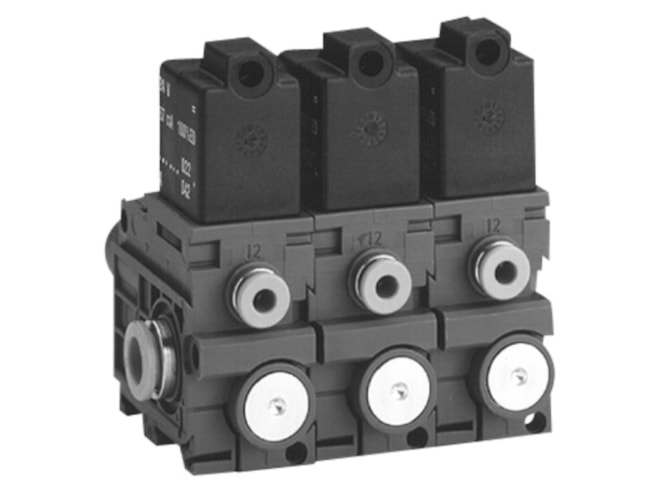

Aventics V579-3/2NC-DA06-012DC-04-RV1-EXT Electric and Pneumatic Actuated Directional Valve

Name: Aventics V579-3/2NC-DA06-012DC-04-RV1-EXT Electric and Pneumatic Actuated Directional Valve
Price: 56.99 USD
Availability: BackOrder

Pipe connection, Single valve, Poppet valve. View other configurations.

$56.99

Part Numbers

V579-3/2NC-DA06-012DC-04-RV1-EXT
5790570210

Highlights...

V579-3/2NC-DA06-012DC-04-RV1-EXT
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: Ø 6x1
Electrical Connection 2: ISO 15217, form C
Flow L M: 520 l/min
Housing Material: Polyamide
Industry: Industrial
Max Working Pressure: 8 bar
Min Working Pressure: 0.5 bar
Operating Voltage: 12 V DC
Seat Seal Type: Soft seal
Switching principle: 3/2, with spring return
Valve Function: NC
Valve Pilot: External
Voltage tolerance: -10% / +10%
Wattage: 1.6 W
Dimension: 3.15x2.76x1.57 (inches)

View other configurations.

AVENTICS 3/2-directional valve, Series 579 5790570210
