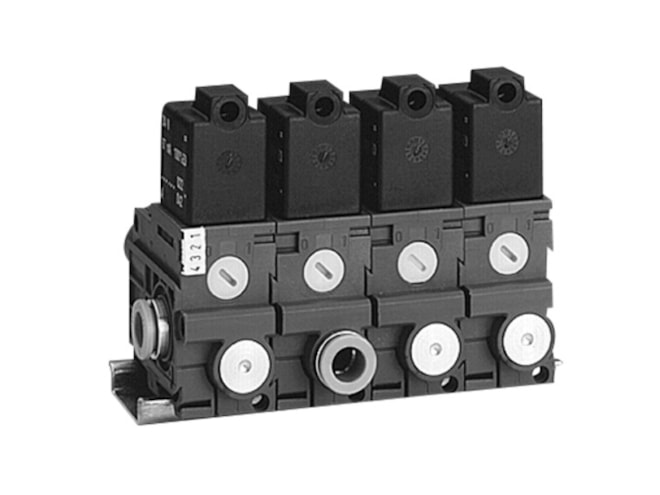

Aventics V579-3/2NO-DA06-012DC-04-RV7 Electric and Pneumatic Actuated Directional Valve

Poppet valve, Pipe connection, Single valve. View other configurations.

Aventics V579-3/2NO-DA06-012DC-04-RV7 Electric and Pneumatic Actuated Directional Valve — Aventics-V579-3/2NO-DA06-012DC-04-RV7

$66.23

Part Numbers

V579-3/2NO-DA06-012DC-04-RV7
5796410210

Highlights...

V579-3/2NO-DA06-012DC-04-RV7
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: Ø 6x1
Electrical Connection 2: ISO 15217, form C
Flow L M: 520 l/min
Housing Material: Polyamide
Industry: Industrial
Manual Override: with detent
Max Working Pressure: 8 bar
Min Working Pressure: 2 bar
Operating Voltage: 12 V DC
Seat Seal Type: Soft seal
Switching principle: 3/2, with spring return
Valve Function: NO
Valve Pilot: Internal
Voltage tolerance: -10% / +10%
Wattage: 1.6 W
Dimension: 3.90x3.90x3.90 (inches)

View other configurations.

AVENTICS 3/2-directional valve, Series 579 5796410210

Spec Sheets
