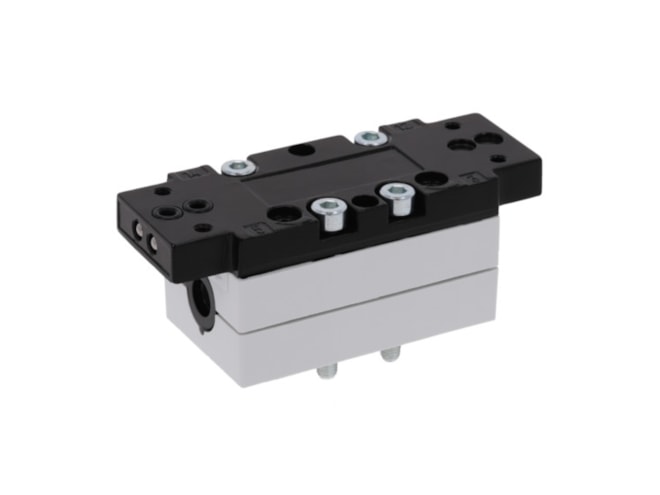

Aventics 581-1 Series Electric and Pneumatic Actuated Directional Valve

Spool valve with electric or pneumatic actuation, highly modular with all valve functions. Up to 1400l/min flow rate. ISO 5599-1 standard, ATEX rating available.

This model has 489 variants.
Part Number
  • 581-1 Series
Highlights...

Features

  • Control: electric, pneumatic
  • Switching principle:
    • 5/3, closed center
    • 5/3, exhausted center
    • 5/2, double solenoid
    • 2x 3/2 NC/NC, with spring return
    • 2x 2/2 NC/NC, with spring return
    • 5/2, with spring return
    • 5/2, with air spring return
    • 5/3, pressurized center
    • 5/2, double solenoid, with differential piston
  • Flow rate(s): up to 1400l/min
  • Max working pressure: 16bar
  • Min working pressure: -0.9bar
  • Manual override with detent available
  • Standardized valve system size: 26mm
  • Combination with CD02-AL Series possible
  • Certification: ISO 5599-1, ATEX configurations available
  • IP65or IP67 rated enclosure

The Aventics 581-1 Series Electric and Pneumatic Actuated Directional Valve features ISO 5599-1 standard spool valves with a highly modular design. The 581-1 Series offers all valve functions, integrated throttle valves, various pilot coils, and a comprehensive range of accessories.
