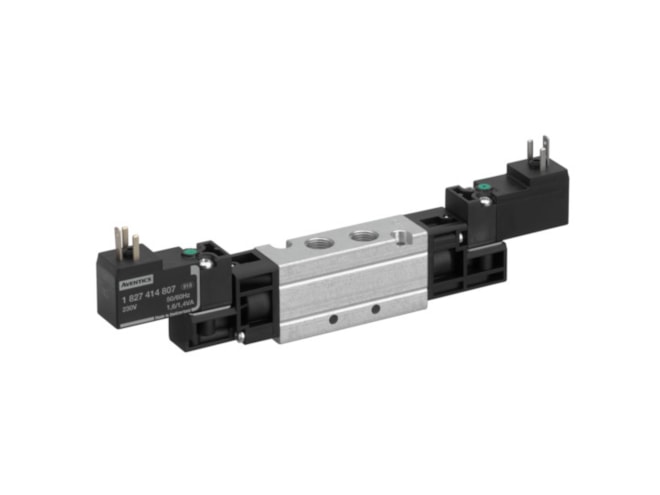

Aventics WV02 Series Electric and Pneumatic Actuated Directional Valve

Anodized aluminum spool valve with 8 to 12ms switching times, low switching pressures. Electric or pneumatic actuation, with up to 600l/min flow rate.

This model has 45 variants.
Part Number
  • WV02 Series
Highlights...

Features

  • Basic valve without coil
  • Switching time(s): 8 to12ms
  • Flow rate(s): 250 to 600l/min
  • Max working pressure: 10bar
  • Min working pressure: -0.9bar
  • Manual override without detent available
  • Normally Open/Normally Closed function available
  • Exchangeable pilot
  • Assembly on manifold block

The Aventics WV02 Series Electric and Pneumatic Actuated Directional Valve is a spool valve design with anodized aluminium housing. This product line features switching times down to 8ms and low switching pressure (down to -0.9bar). The WV02 Series operates with low power consumption due to a seal with low friction co-efficient.
