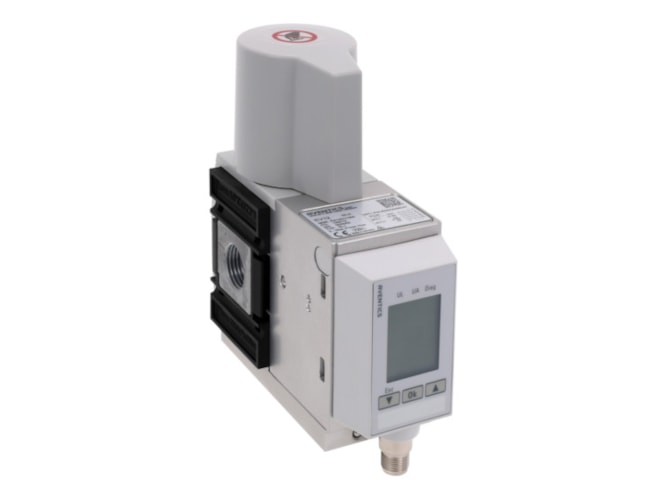

Aventics EV12 Series Proportional Pneumatic Valve

High flow with compact design, no pressure loss in case of a load.

This model has 15 variants.
Part Number
  • EV12 Series
Highlights...

Features

  • 0 to 220mA max. current consumption
  • 0 to 24VDC operating voltage
  • 0 to 6,500l/min flow
  • 10bar regulation range
  • 10bar max. working pressure
  • Input & output signal options:
    • 0 to 10V
    • 4 to 20mA
    • 0 to 20mA
  • G1/2 or G3/8 compressed air connection input and output options
  • Right, left, or through air supply
  • Externally piloted control type
  • AS3 scale size
  • Poppet valve regulator

The Aventics EV12 Series Proportional Pneumatic Valve is a high flow valve with a compact design. It can be used as a stand-alone solution, as a battery for block assembly with consistently controlled pressure, or integrated into a maintenance unit.
