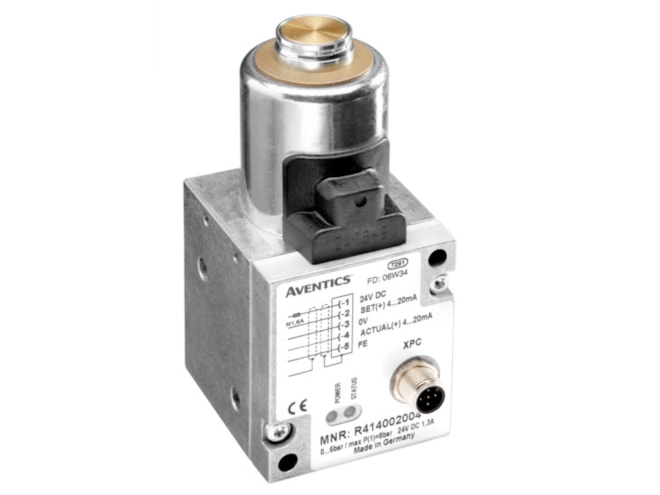

Aventics ED05 Series Proportional Pneumatic Valve

Analog direct-acting pressure regulator for up to 11bar application pressures. Flow rate up to 1000l/min, with 0 to 10V, 0 to 20mA or 4 to 20mA signaling.

This model has 21 variants.
Part Number
  • ED05 Series
Highlights...

Features

  • Compressed air connection input, output, and air exhaust: G1/4
  • Analog actuating control: 0 to 10V, 4 to 20mA, 0 to 20mA
  • Analog or constant voltage output signal
  • Working pressure max: 11bar
  • Flow Rate: 1000l/min
  • Hysteresis: 0.06bar
  • Robust poppet valve technology
  • No wearable pilot valves or diaphragm
  • IP65 protection class

The Aventics ED05 Series Proportional Pneumatic Valve is a direct-acting pressure regulator for sensitive, on-demand pressure control utilizing digital control electronics and innovative proportional technology. The robust poppet valve technology, large opening cross-section and soft-sealing valve seat ensure high resistance to contamination from application environment.
