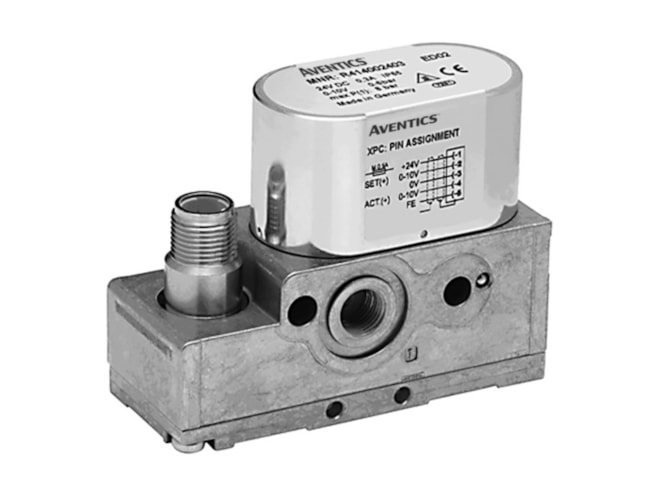

Aventics ED02 Series Proportional Pneumatic Valve

Analog direct-acting pressure regulator for up to 12bar application pressures. Flow rate up to 120l/min, with 0 to 10V, 0 to 20mA or 4 to 20mA signaling.

This model has 24 variants.
Part Number
  • ED02 Series
Highlights...

Features

  • Compressed air connection input, output: G1/8, 1/8in NPT
  • Input signal: 0 to 10V, 4 to 20mA, 0 to 20mA
  • Analog or constant voltage output signal
  • Working pressure max: 12bar
  • Flow Rate: 120l/min
  • Hysteresis: 0.003 to 0.05bar
  • Robust poppet valve technology
  • IP65 protection class

The Aventics ED02 Series Proportional Pneumatic Valve is a direct-acting pressure regulator for sensitive, on-demand pressure control utilizing digital control electronics and innovative proportional technology. The robust poppet valve technology, large opening cross-section and soft-sealing valve seat ensure high resistance to contamination from application environments.
