This model has 36 variants.
  • NU1 Series

Overview

Features

  • Fitting types:
    • Straight fitting
    • Swivel banjo connection (1-fold)
    • Banjo union
    • Elbow fitting
    • Tube nut
  • Housing material: Polyoxymethylene (POM)
  • Threaded connections: G 1/8, G 1/4, R 1/8, R 1/4, M10x1, M12x1
  • Tube connections: Ø 4, Ø 6, Ø 8, and Ø 9 mm
  • Tube connection type: Push-on with tube nut
  • Working pressure: 0 to 10 bar (0 to 145 psi)
  • Ambient temperature: -10 to 60°C (14 to 140°F)
  • Medium: Compressed air
  • Packaging: sold in units of 10

Description

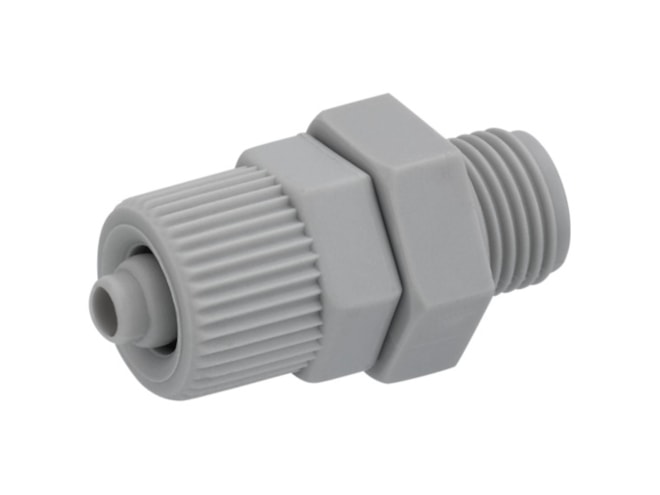

The AVENTICS NU1 Series is a line of plastic fittings with tube nuts. They connect compressed air tubing to valves, cylinders, and other pneumatic parts. Each fitting has a polyoxymethylene (POM) housing, which is strong and wears well but stays light. That makes NU1 fittings a good fit for compact machines and for spots where many connections sit close together.

The line comes in several shapes so it can suit different layouts. Straight fittings make direct, in-line connections. Swivel banjo connections and banjo unions turn the air path 90 degrees and can be turned to any angle, ideal for compact spaces. Elbow fittings route tubing around obstacles. Separate tube nuts are also sold for replacements or custom setups.
