Aventics SN2 Series Proximity Sensor
IP67 universal proximity sensor with M8 plug or free wire ends. Durable reed or electronic PNP sensor variants.
- SN2 Series
- SN2 Series
- By Aventics
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Compatible cylinder series:
- TRB, PRA, ITS, MNI, CSL-RD, ICM, RPC, TRR, FLT, CVI
- Connection:
- M8-plug (2-, 3-, and 4-pin) directly on the sensor housing
- Free wire ends
- Reed and electronic PNP sensor versions available
- Polarity reversal protection
- Short circuit protection available
- Supply voltage: up to 240 VAC, 60 VDC
- Protection: IP67
- Cable length: 3 to 20 m
Description

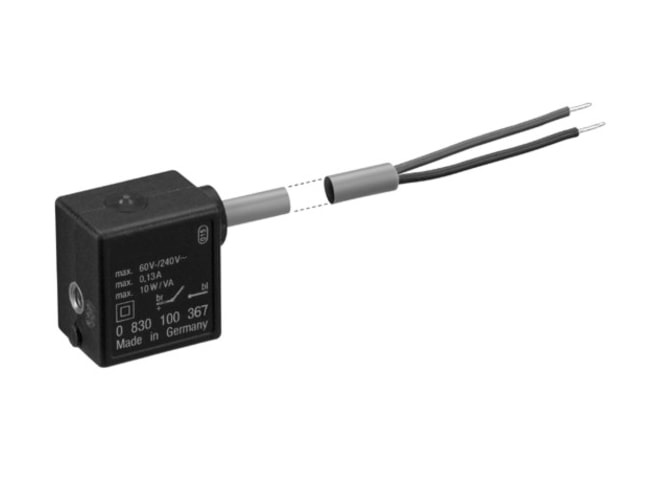

The Aventics SN2 Series Proximity Sensor is a cubic sensor compatible across a range of cylinders. The universal functionality and shape make them an ideal solution across a variety of industrial applications. The robust reed sensor is designed for reliable operation across a wide voltage range, up to 240 VAC. This series of sensor is also service-friendly, due to the line mounting directly on the housing.
