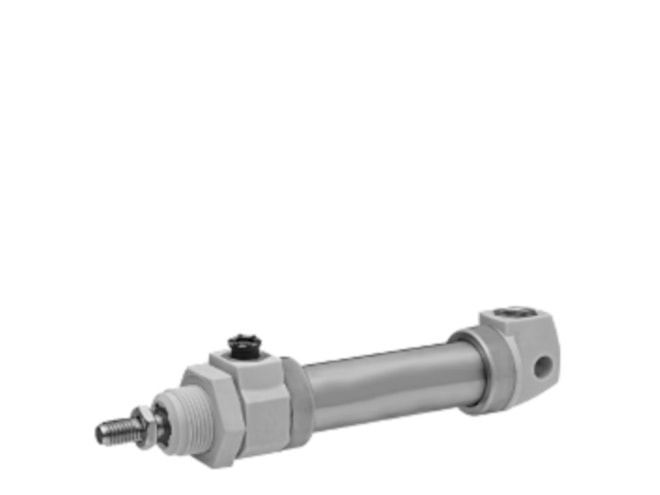

Aventics ICM Series Pneumatic Linear Actuator
Stainless steel mini cylinder with polymer cover. 8 to 32mm bore size, up to 506N/198N extending/retracting piston force.
Part Number
- ICM Series
Highlights...
- ICM Series
- By Aventics
- FREE Shipping on orders of $1,000 or more
Overview
Features
- Bore size: 8 to 32mm
- Stroke length: 25 to 400mm
- Max working pressure: 10bar
- Piston force (extending): 26 to 506N
- Piston force (retracting): 24 to 198N
- Magnetic piston available
- Standard industry scraper
- Compressed air connection: M5, G1/8
- Corrosion-resistant
Description
The Aventics ICM Series Pneumatic Linear Actuator is a mini cylinder designed with high corrosion resistance and reliable performance in harsh environments. The cylinder tube and piston rod are made of stainless steel, with high-quality polymer cylinder covers. These actuators are suited to use in food processing applications.
