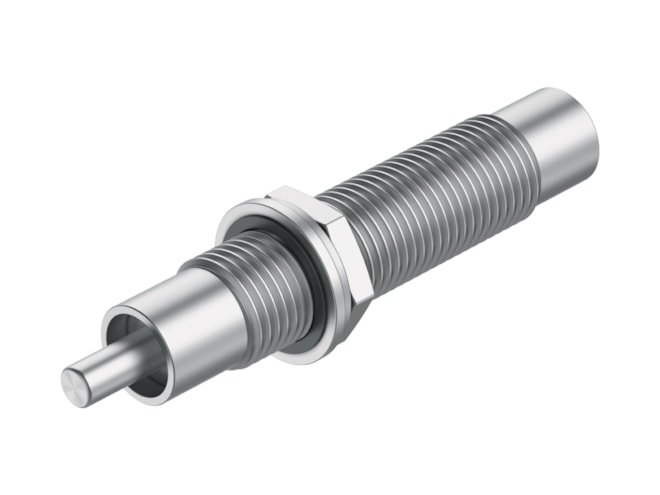

Festo DYSD Series Shock Absorber

Hydraulic shock absorber with path-controlled flow control function, adjustable stroke via hexagon socket. Steel construction, with 5 through 25mm stroke length.

This model has 17 variants.
Highlights...

Features

  • Operation: single-acting, pushing
  • Size: 5 through 32mm
  • Stroke length: 5 through 25mm
  • Self-adjusting cushioning
    • Short cushioning stroke
  • Through fastening thread
  • Ambient temperature: 0 to 60°C
  • Impact speed: 1 m/s max
  • RoHS compliant materials:
    • Housing: High-alloy steel [5 through 8mm], Galvanized steel [12 through 32mm]
    • Piston rod: High-alloy steel
    • Nut: Galvanized steel size
    • Seal: NBR
  • Additional return spring for compensation in the pressure chamber

The Festo DYSD Series Shock Absorber is a single-acting, hydraulic shock absorber well suited for use with rotary drives and pressure chambers. Designed to withstand impact speeds up to 1m/s, with stroke lengths from 5 through 25mm. Each unit comes with a fixed stop, and a hexagon socket for stroke adjustment. The DYSD Series is compatible with the DRRD Series Semi-Rotary Drive.
