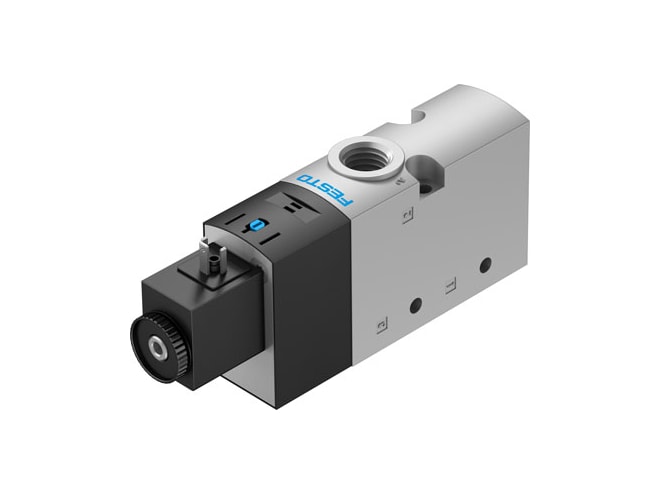

Festo VUVS-LT30-M32U-MD-G38-F8-1C1 Solenoid Valve

Name: Festo VUVS-LT30-M32U-MD-G38-F8-1C1 Solenoid Valve
Price: 129.72 USD
Availability: BackOrder

Size 30 Poppet valve 3/2-way valve, normally open. G3/8 pneumatic connection. Reset method: Mechanical spring. Manual Override: Non-detenting, detenting. View other configurations.

$129.72

Part Numbers

VUVS-LT30-M32U-MD-G38-F8-1C1
8036681

Highlights...

VUVS-LT30-M32U-MD-G38-F8-1C1
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 2-3 weeks

Features

3/2 open, single solenoid valve function
Electric type of actuation
31MM valve size
1600L2 standard nominal flow rate
0.25MPA operating pressure
1MPA operating pressure
2.5BAR operating pressure
10BAR operating pressure
Poppet seat design
Mechanical spring type of reset
C UL us - Recognized (OL) approval
IP65 degree of protection
With plug socket degree of protection
To IEC 60529 degree of protection
7.9MM nominal size
With flow control option exhaust-air function
Soft sealing principle
Optional mounting position
Detenting manual override
Non-detenting manual override
Pilot actuated type of piloting
Internal pilot air supply
Non-reversible flow direction
991140 symbol
Underlap lap
0.2 b value
7LSB c value
36MS switching time off
14MS switching time on
100% duty cycle
2000MIS max. positive test pulse with 0 signal
3600MIS max. negative test pulse with 1 signal
24 V DC: 3.3 W characteristic coil data
+/- 10 % permissible voltage fluctuations
Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
2 - Moderate corrosion stress corrosion resistance class cRC
-10GC media temperature
60GC media temperature
Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
359G product weight
Type C electrical connection
To EN 175301-803 electrical connection
Either: type of mounting
On manifold rail type of mounting
With through-hole type of mounting
Not ducted breather connection
M5 pilot exhaust port 82
RoHS-compliant note on materials
HNBR material seals
NBR material seals
TPE-U(PU) material seals
Painted die cast aluminium material housing
Wrought aluminium alloy material piston slide
Galvanised steel material screws
-10GC ambient temperature to 60GC ambient temperature
Pneumatic connection g3/8 , port 1
Pneumatic connection g3/8 , port 2
Pneumatic connection g3/8 , port 3
