Festo VUVG-B14Z-M32U-AZT-F-1T1L-EX2C Solenoid Valve | Electric and Pneumatic Actuated Directional Valves | Motion World

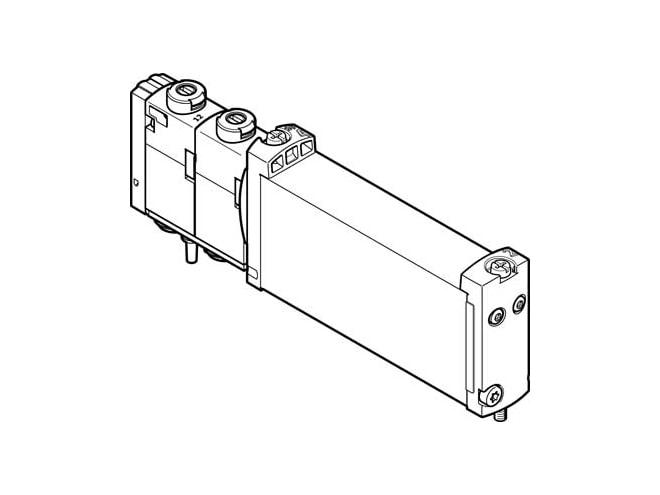

Festo VUVG-B14Z-M32U-AZT-F-1T1L-EX2C Solenoid Valve

$131.56

Part Numbers

VUVG-B14Z-M32U-AZT-F-1T1L-EX2C
8041971

Highlights...

VUVG-B14Z-M32U-AZT-F-1T1L-EX2C
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 5 weeks

Features

3/2 open, single solenoid valve function
Electric type of actuation
14MM valve size
320L2 standard nominal flow rate
-0.09MPA operating pressure
1MPA operating pressure
-0.9BAR operating pressure
10BAR operating pressure
Piston gate valve design
Pneumatic spring type of reset
C UL us - Recognized (OL) approval
IP65 degree of protection
IP67 degree of protection
With flow control option exhaust-air function
Soft sealing principle
Optional mounting position
Detenting manual override
Non-detenting manual override
Pilot actuated type of piloting
External pilot air supply
991789 symbol
Overlap lap
LED signal status display
0.15MPA pilot pressure
0.8MPA pilot pressure
1.5BAR pilot pressure
8BAR pilot pressure
3HZ max. switching frequency
20MS switching time off
13MS switching time on
100% duty cycle
1600MIS max. positive test pulse with 0 signal
3000MIS max. negative test pulse with 1 signal
22 V DC: 1.0 W characteristic coil data
+/- 10 % permissible voltage fluctuations
Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
2 - Moderate corrosion stress corrosion resistance class cRC
VDMA24364-B2-L lABS (PWIS) conformity
-5GC media temperature
60GC media temperature
Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
91G product weight
Via sub-base electrical connection
On manifold rail type of mounting
RoHS-compliant note on materials
HNBR material seals
NBR material seals
Wrought aluminium alloy material housing
-5GC ambient temperature to 60GC ambient temperature

Spec Sheets

Festo VUVG-B14Z-M32U-AZT-F-1T1L-EX2C Solenoid Valve Datasheet (92 KB)

Other

Festo VUVG-B14Z-M32U-AZT-F-1T1L-EX2C Solenoid Valve CAD Diagram (490 KB)

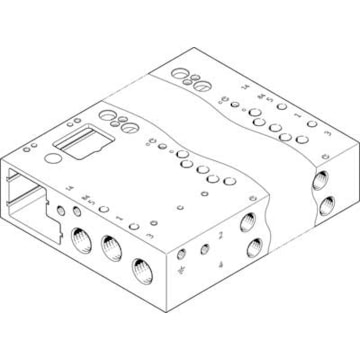

Festo VABM-L1-14W-G14-10-GR Manifold Rail
