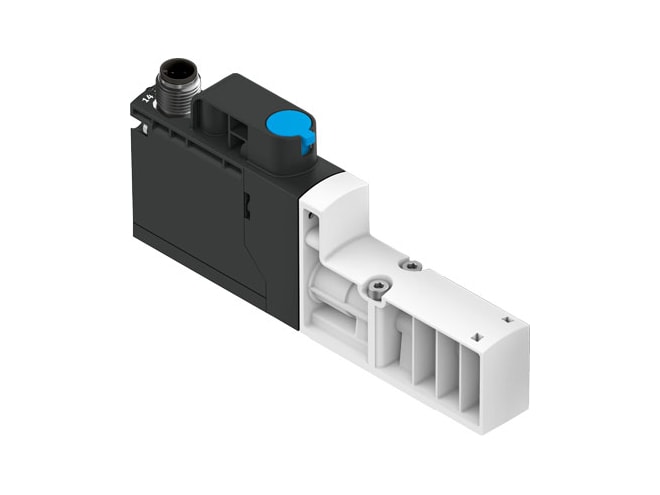

Festo VSVA-BT-M32CS1-MYE-A2-1T1L-PZ Solenoid Valve

Features

• 3/2-way, closed, monostable valve function
• Electric type of actuation
• 18MM construction width
• 125L2 standard nominal flow rate
• 125L2 standard nominal flow rate for exhaust
• 0.3MPA operating pressure
• 1MPA operating pressure
• 3BAR operating pressure
• 10BAR operating pressure
• Poppet seat design
• Mechanical spring type of reset
• Pneumatic spring type of reset
• IP65 degree of protection
• Soft sealing principle
• Optional mounting position
• Detenting manual override
• Self-resetting via electrical control signal manual override
• Pilot actuated type of piloting
• Internal pilot air supply
• Non-reversible flow direction
• 995774 symbol
• Underlap lap
• Yellow LED, valve control signal status display
• Green LED, pressure switch, exhausted status signal status display
• Via pressure switch, exhausted status switching position sensing
• 100% duty cycle
• 2000MIS max. positive test pulse with 0 signal
• 1200MIS max. negative test pulse with 1 signal
• 24V nominal operating voltage dC
• 24 V DC: 1.6 W characteristic coil data
• +/- 10 % permissible voltage fluctuations
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation not possible note on operating and pilot medium
• Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
• Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• -5GC media temperature
• 50GC media temperature
• Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
• 443 years, pressure switch mean time to failure (MTTF), subcomponent
• 110G product weight
• Plug-in electrical connection
• On sub-base type of mounting
• RoHS-compliant note on materials
• HNBR material seals
• NBR material seals
• PA-reinforced material housing
• Galvanised steel material screws
• N/C contact switching element function
• -5GC ambient temperature to 50GC ambient temperature
• Pneumatic connection g1/8 , port 2
• Pneumatic connection g1/8 , port 4
