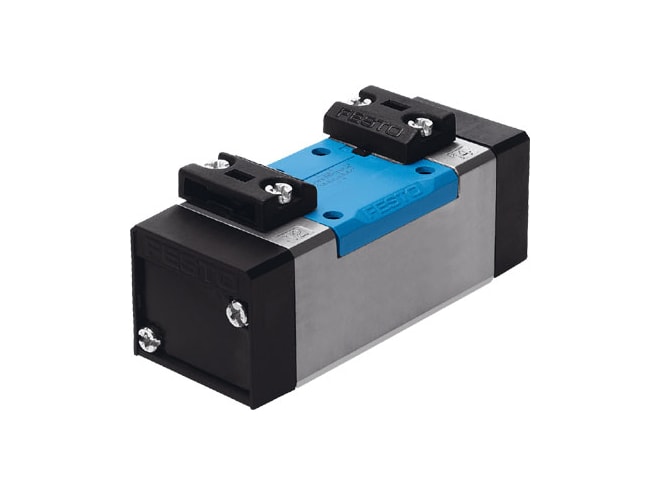

Festo VL-5/3G-D-1-C Pneumatic Valve

Features

• 5/3 closed valve function
• Pneumatic type of actuation
• 42MM construction width
• 1200L2 standard nominal flow rate
• Piston gate valve design
• Mechanical spring type of reset
• UL - Recognized (OL) approval
• 8MM nominal size
• 43MM grid dimension
• With flow control option exhaust-air function
• Soft sealing principle
• Optional mounting position
• ISO 5599-1 conforms to standard
• None manual override
• 106 iSO code
• Direct type of piloting
• Reversible flow direction
• 991018 symbol
• Overlap lap
• 3BAR pilot pressure
• 16BAR pilot pressure
• 44MS switching time off
• 7MS switching time on
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 vibration resistance
• Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• -10GC media temperature
• 60GC media temperature
• 85DBA sound pressure level
• Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
• 320G product weight
• On sub-base type of mounting
• With through-hole type of mounting
• Sub-base size 1 to ISO 5599-1 pilot air port 12
• Sub-base size 1 to ISO 5599-1 pilot air port 14
• RoHS-compliant note on materials
• HNBR material seals
• NBR material seals
• Die-cast aluminium material housing
• -0.9BAR to 16BAR operating pressure
• -10GC ambient temperature to 60GC ambient temperature
• Pneumatic connection sub-base size 1 to ISO 5599-1 , port 1
• Pneumatic connection sub-base size 1 to ISO 5599-1 , port 2
• Pneumatic connection sub-base size 1 to ISO 5599-1 , port 3
• Pneumatic connection sub-base size 1 to ISO 5599-1 , port 4
• Pneumatic connection sub-base size 1 to ISO 5599-1 , port 5
