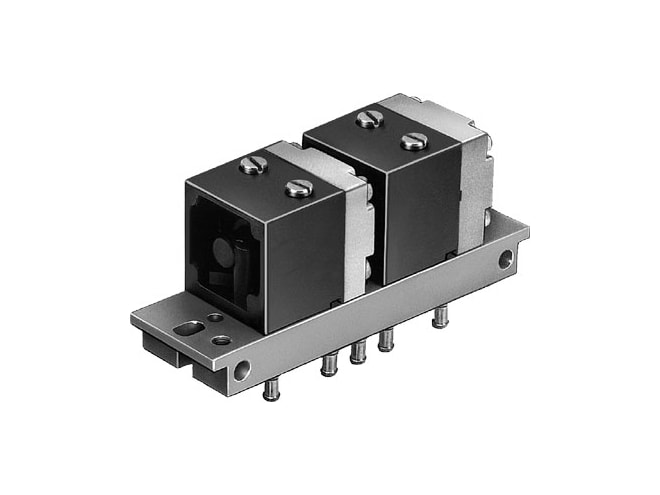

Festo VL/O-3-PK-3X2 Pneumatic Valve

Retired products cannot be ordered

Part Numbers

Highlights...

3/2 open, single solenoid valve function
100L2 standard nominal flow rate
Poppet seat design
2.5MM nominal size
995570 symbol
50MS switching time off
12MS switching time on
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
VDMA24364-B1/B2-L lABS (PWIS) conformity
Compressed air to ISO 8573-1:2010 [7:-:-] pilot medium
180G product weight
Either: type of mounting
On sub-base type of mounting
On mounting frame type of mounting
With through-hole type of mounting
Brass material sub-base
PPS reinforced material sub-base
NBR material seals
Polymer material housing
Die-cast zinc material housing
0BAR to 8BAR operating pressure
-10GC ambient temperature to 60GC ambient temperature
Pneumatic connection pK-3 , port 1
Pneumatic connection pK-3 , port 4
Pneumatic connection pK-3 , port 5
