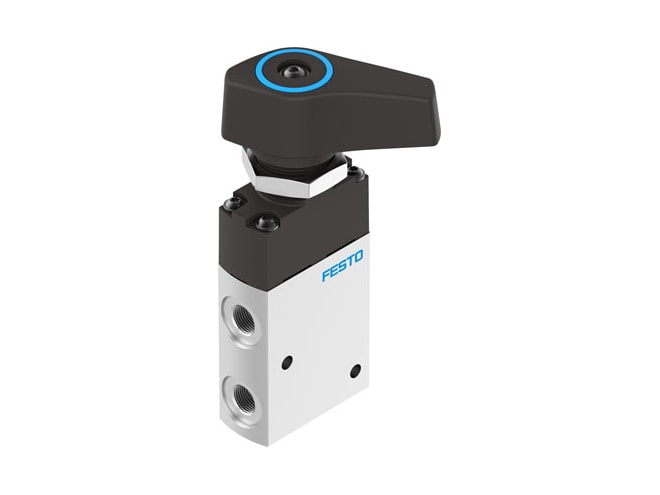

Festo VHEF-ET-M32-M-G18 Selector Valve

Manually actuated monostable pneumatic valve with Selector switch actuation and 3/2-way valve, normally closed or open function. View other configurations.

Festo VHEF-ET-M32-M-G18 Selector Valve

$97.86

Part Numbers

VHEF-ET-M32-M-G18
8080968

Highlights...

VHEF-ET-M32-M-G18
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 2-3 weeks

Features

3/2-way, monostable, open/closed valve function
Manual type of actuation
20MM construction width
750L2 standard nominal flow rate
-0.095MPA operating pressure
1MPA operating pressure
-0.95BAR operating pressure
10BAR operating pressure
Poppet seat design
Mechanical spring type of reset
5.6MM nominal size
With flow control option exhaust-air function
Actuate manually only instructions on use
Soft sealing principle
Optional mounting position
Direct type of piloting
Reversible flow direction
995893 symbol
Zero overlap lap
0.5HZ max. switching frequency
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
1 - Low corrosion stress corrosion resistance class cRC
VDMA24364-B1/B2-L lABS (PWIS) conformity
-10GC media temperature
60GC media temperature
0.4NM actuating torque
200N max. force on actuation
200N max. lateral force on actuation
206G product weight
Either: type of mounting
Front panel mounting type of mounting
With through-hole type of mounting
RoHS-compliant note on materials
PA-reinforced material cover
NBR material seals
Anodised wrought aluminium alloy material housing
PA-reinforced material lever
-10GC ambient temperature to 60GC ambient temperature
Pneumatic connection g1/8 , port 1
Pneumatic connection g1/8 , port 2
Pneumatic connection g1/8 , port 3

View other configurations.
