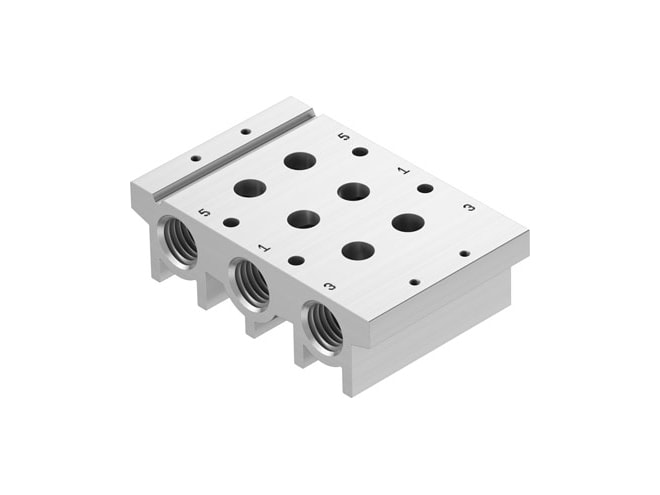

Festo VABM-L1-18S-G38-2 Manifold Rail

$67.00

Part Numbers

VABM-L1-18S-G38-2
574455

Highlights...

VABM-L1-18S-G38-2
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 26 in stock.
Additional 2-3 days to process. Call for expedite options.

Overview

Features

19MM grid dimension
16 max. number of valve positions
-0.09MPA operating pressure
1MPA operating pressure
-0.9BAR operating pressure
10BAR operating pressure
RCM trademark approval
C UL us - Recognized (OL) approval
2 - Moderate corrosion stress corrosion resistance class cRC
VDMA24364-B1/B2-L lABS (PWIS) conformity
Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
Class 5 according to ISO 14644-1 cleanroom class
1.5NM max. tightening torque h-rail mounting
1.18NM max. tightening torque for valve mounting
3NM max. tightening torque wall mounting
226G product weight
RoHS-compliant note on materials
Wrought aluminium alloy material manifold rail
Pneumatic connection g3/8 , port 1
Pneumatic connection g3/8 , port 3
Pneumatic connection g3/8 , port 5

This product is an accessory for the following products:

Festo VUVG-L18-B52-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/2-way valve, double solenoid/bistable. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: None.

Mfg. has stock

$72.13

Festo VUVG-L18-B52-T-G14-1H2L-W1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/2-way valve, double solenoid/bistable. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

$112.75

Festo VUVG-L18-B52-T-G14-1P3 Solenoid Valve

In Stock

$96.13

Festo VUVG-L18-B52-T-G14-1R8L Solenoid Valve

Mfg. has stock

$125.27

Festo VUVG-L18-B52-ZT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 5/2-way valve, double solenoid/bistable. External pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

Mfg. has stock

$100.52

Festo VUVG-L18-M52-M-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/2-way valve, single solenoid/monostable. Internal pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: None.

Mfg. has stock

$67.77

Festo VUVG-L18-M52-MT-G14-1H2L-W1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/2-way valve, single solenoid/monostable. Internal pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: Non-detenting, detenting with accessories.

$88.45

Festo VUVG-L18-M52-MT-G14-1P3 Solenoid Valve

Mfg. has stock

$80.10

Festo VUVG-L18-M52-MT-G14-1R8L Solenoid Valve

Mfg. has stock

$94.68

Festo VUVG-L18-M52-MZT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 5/2-way valve, single solenoid/monostable. External pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: Non-detenting, detenting with accessories.

Mfg. has stock

$84.48

Festo VUVG-L18-M52-R-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/2-way valve, single solenoid/monostable. Internal pilot air. G1/4 pneumatic connection. Reset method: Mixed, pneumatic/mechanical spring. Manual override: None.

In Stock

$64.18

Festo VUVG-L18-M52-RT-G14-1H2L-W1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/2-way valve, single solenoid/monostable. Internal pilot air. G1/4 pneumatic connection. Reset method: Mixed, pneumatic/mechanical spring. Manual override: Non-detenting, detenting with accessories.

$84.78

Festo VUVG-L18-M52-RT-G14-1P3 Solenoid Valve

Mfg. has stock

$76.48

Festo VUVG-L18-M52-RT-G14-1R8L Solenoid Valve

Mfg. has stock

$91.04

Festo VUVG-L18-M52-RZT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 5/2-way valve, single solenoid/monostable. External pilot air. G1/4 pneumatic connection. Reset method: Mixed, pneumatic/mechanical spring. Manual override: Non-detenting, detenting with accessories.

Mfg. has stock

$80.85

Festo VUVG-L18-P53C-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position closed. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: None.

Mfg. has stock

$89.42

Festo VUVG-L18-P53C-T-G14-1H2L-W1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position closed. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

$130.22

Festo VUVG-L18-P53C-T-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position closed. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

Mfg. has stock

$113.61

Festo VUVG-L18-P53C-T-G14-1R8L Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position closed. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

Mfg. has stock

$142.76

Festo VUVG-L18-P53C-ZT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position closed. External pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

Mfg. has stock

$117.99

Festo VUVG-L18-P53E-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position exhausted. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: None.

$89.42

Festo VUVG-L18-P53E-T-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position exhausted. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

Mfg. has stock

$113.61

Festo VUVG-L18-P53E-T-G14-1R8L Solenoid Valve

Mfg. has stock

$142.76

Festo VUVG-L18-P53E-ZT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position exhausted. External pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

$117.99

Festo VUVG-L18-P53U-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position pressurized. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: None.

$89.42

Festo VUVG-L18-P53U-T-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position pressurized. Internal pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

$113.61

Festo VUVG-L18-P53U-T-G14-1R8L Solenoid Valve

Mfg. has stock

$142.76

Festo VUVG-L18-P53U-ZT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 5/3-way valve, mid-position pressurized. External pilot air. G1/4 pneumatic connection. Reset method: None. Manual override: Non-detenting, detenting with accessories.

$117.99

Festo VUVG-L18-T32C-A-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally closed. Internal pilot air. G1/4 pneumatic connection. Reset method: Pneumatic spring. Manual override: None.

$77.88

Festo VUVG-L18-T32C-AT-G14-1H2L-W1 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally closed. Internal pilot air. G1/4 pneumatic connection. Reset method: Pneumatic spring. Manual override: Non-detenting, detenting with accessories.

$118.56

Festo VUVG-L18-T32C-AT-G14-1P3 Solenoid Valve

Mfg. has stock

$101.96

Festo VUVG-L18-T32C-AT-G14-1R8L Solenoid Valve

$131.11

Festo VUVG-L18-T32C-M-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally closed. Internal pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: None.

$85.09

Festo VUVG-L18-T32C-MT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally closed. Internal pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: Non-detenting, detenting with accessories.

Mfg. has stock

$109.25

Festo VUVG-L18-T32C-MT-G14-1R8L Solenoid Valve

Mfg. has stock

$138.38

Festo VUVG-L18-T32C-MZT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally closed. External pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: Non-detenting, detenting with accessories.

Mfg. has stock

$113.61

Festo VUVG-L18-T32H-A-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, 1x normally closed, 1x normally open. Internal pilot air. G1/4 pneumatic connection. Reset method: Pneumatic spring. Manual override: None.

$77.88

Festo VUVG-L18-T32H-AT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, 1x normally closed, 1x normally open. Internal pilot air. G1/4 pneumatic connection. Reset method: Pneumatic spring. Manual override: Non-detenting, detenting with accessories.

$101.96

Festo VUVG-L18-T32H-AT-G14-1R8L Solenoid Valve

Mfg. has stock

$131.11

Festo VUVG-L18-T32H-M-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, 1x normally closed, 1x normally open. Internal pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: None.

$85.09

Festo VUVG-L18-T32H-MT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, 1x normally closed, 1x normally open. Internal pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: Non-detenting, detenting with accessories.

$109.25

Festo VUVG-L18-T32H-MT-G14-1R8L Solenoid Valve

$138.38

Festo VUVG-L18-T32H-MZT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, 1x normally closed, 1x normally open. External pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: Non-detenting, detenting with accessories.

$113.61

Festo VUVG-L18-T32U-A-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally open. Internal pilot air. G1/4 pneumatic connection. Reset method: Pneumatic spring. Manual override: None.

$77.88

Festo VUVG-L18-T32U-AT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally open. Internal pilot air. G1/4 pneumatic connection. Reset method: Pneumatic spring. Manual override: Non-detenting, detenting with accessories.

$101.96

Festo VUVG-L18-T32U-AT-G14-1R8L Solenoid Valve

$131.11

Festo VUVG-L18-T32U-M-G14-P1 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally open. Internal pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: None.

$85.09

Festo VUVG-L18-T32U-MT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally open. Internal pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: Non-detenting, detenting with accessories.

$109.25

Festo VUVG-L18-T32U-MT-G14-1R8L Solenoid Valve

$138.38

Festo VUVG-L18-T32U-MZT-G14-1P3 Solenoid Valve

Size 18 In-line valve. Piston spool 2x3/2-way valve, normally open. External pilot air. G1/4 pneumatic connection. Reset method: Mechanical spring. Manual override: Non-detenting, detenting with accessories.

$113.61
