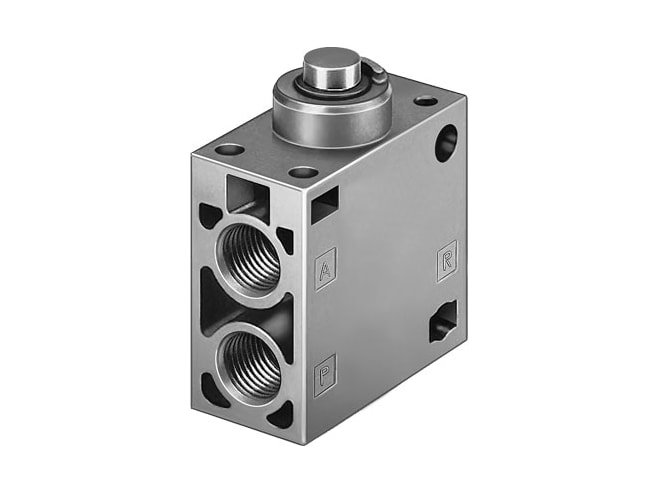

Festo V-3-1/4-B Stem Actuated Valve

Stem actuated valve with G1/4 connection and 3/2-way valve, normally closed, monostable valve function. View other configurations.

$163.65
Part Numbers
  • V-3-1/4-B
  • 6808
Highlights...

Features

  • 3/2-way, closed, monostable valve function
  • Mechanical type of actuation
  • 600L2 standard nominal flow rate
  • Poppet seat design
  • 7MM nominal size
  • Direct type of piloting
  • 991095 symbol
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 70N actuating force
  • 130G product weight
  • With through-hole type of mounting
  • NBR material seals
  • Die-cast aluminium material housing
  • -0.95BAR to 10BAR operating pressure
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection g1/4 , port 1
  • Pneumatic connection g1/4 , port 2
  • Pneumatic connection g1/4 , port 3
View other configurations.
