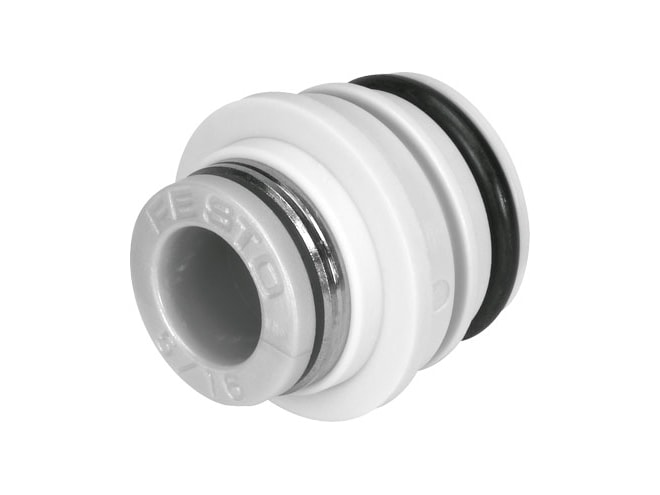

Festo QSPKG18-5/16-U Cartridge

Name: Festo QSPKG18-5/16-U Cartridge
Price: 25.5 USD
Availability: BackOrder

Push in cartridge with Straight design for 18mm to 5/16in connection. View other configurations.

$25.50

Part Numbers

QSPKG18-5/16-U
132651

Highlights...

QSPKG18-5/16-U
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 5 weeks

Features

Standard size
5.5MM nominal size
Optional mounting position
Straight design design
10 size of pack
Push-pull principle design
-0.095MPA operating pressure complete temperature range
1MPA operating pressure complete temperature range
-0.95BAR operating pressure complete temperature range
10BAR operating pressure complete temperature range
-13.775PSI operating pressure complete temperature range
145PSI operating pressure complete temperature range
See certificate maritime classification
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Lubricated operation possible note on operating and pilot medium
1 - Low corrosion stress corrosion resistance class cRC
VDMA24364-B1/B2-L lABS (PWIS) conformity
-5GC ambient temperature
60GC ambient temperature
5.4G product weight
Mounting pin type of mounting
23FA ambient temperature
140FA ambient temperature
Grey colour of release ring
RoHS-compliant note on materials
PA-reinforced material housing
POM material release ring
NBR material tubing seal
High-alloy stainless steel material tubing clamp component
Pneumatic connection cartridge 18 mm , port 1
Pneumatic connection for tubing outside diameter of 5/16" , port 2

View other configurations.

Spec Sheets

Festo QSPKG18-5/16-U Cartridge Datasheet (78 KB)

Other

Festo QSPKG18-5/16-U Cartridge CAD Diagram (46 KB)
