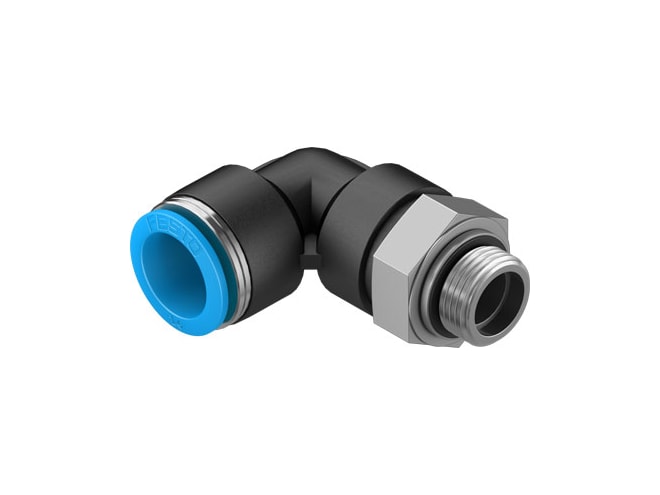

Festo QSL-G3/8-16 Push-in L-fitting

$20.78

Part Numbers

QSL-G3/8-16
186348

Highlights...

QSL-G3/8-16
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 752 in stock.
Additional 2-3 days to process. Call for expedite options.

Overview

Features

Standard size
11MM nominal size
Sealing ring type of seal on screwed plug
Optional mounting position
L-shape design
1 size of pack
Push-pull principle design
-0.095MPA operating pressure complete temperature range
0.6MPA operating pressure complete temperature range
-0.95BAR operating pressure complete temperature range
6BAR operating pressure complete temperature range
-13.775PSI operating pressure complete temperature range
87PSI operating pressure complete temperature range
-0.095MPA temperature-dependent operating pressure
1.4MPA temperature-dependent operating pressure
-0.95BAR temperature-dependent operating pressure
14BAR temperature-dependent operating pressure
-13.775PSI temperature-dependent operating pressure
203PSI temperature-dependent operating pressure
See certificate maritime classification
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Lubricated operation possible note on operating and pilot medium
1 - Low corrosion stress corrosion resistance class cRC
VDMA24364-B1/B2-L lABS (PWIS) conformity
15.5NM nominal torque
± 20% tolerance for nominal tightening torque
77G product weight
External hexagon, A/F 20 mm type of mounting
Blue colour of release ring
Nickel-plated brass material screwed plug
RoHS-compliant note on materials
PBT material housing
POM material release ring
NBR material tubing seal
High-alloy stainless steel material tubing clamp component
-10GC ambient temperature to 80GC ambient temperature
Pneumatic connection male thread G3/8 , port 1
Pneumatic connection for tubing outside diameter of 16 mm , port 2
Water operating medium
