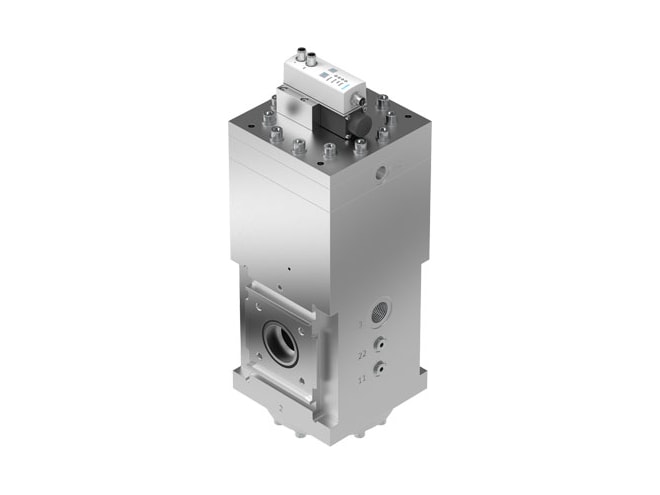

Festo PREL-186-HP3-A4-A-40CFX-1 Electrical Pressure Regulator

Flange mounted proportional pressure control valve. 186 model size. 4 to 20mA individual valve setpoint. 4 to 20mA electrical output. Up to 40 Bar pressure range. Variant: Variant 1. View other configurations.

$13,818.11
Part Numbers
  • PREL-186-HP3-A4-A-40CFX-1
  • 1709213
Highlights...

Features

  • 186 size
  • 45 nominal size dN
  • L series
  • Vertical mounting position
  • Electric type of actuation
  • Electrically adjustable pressure regulator design
  • Output pressure constant controller function
  • Via primary pressure compensation controller function
  • With secondary venting controller function
  • 995417 symbol
  • 0MPA operating pressure
  • 5MPA operating pressure
  • 0BAR operating pressure
  • 50BAR operating pressure
  • 0.806BAR max. pressure hysteresis
  • 24V nominal operating voltage dC
  • 4 - 20 mA signal range analogue output
  • 4 - 20 mA signal range analogue input
  • Current type 4-20 mA sETPOINT/ACTUAL values
  • Special Equipment Type Test Certification approval
  • In accordance with EU Pressure Equipment Directive cE mark (see declaration of conformity)
  • To UK Pressure Equipment Regulations cE marking (see declaration of conformity)
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Inert gases operating medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364 zone III lABS (PWIS) conformity
  • See supplementary material information suitable for use with food
  • 5GC media temperature
  • 50GC media temperature
  • Plug connector, M12, 5-pin, A-coded electrical connection, iN
  • Plug connector, M12, 5-pin, A-coded electrical connection, oUT
  • Either: type of mounting
  • On service unit type of mounting
  • With accessories type of mounting
  • G1/4 pneumatic port 22
  • G1/2 pneumatic port 82
  • RoHS-compliant note on materials
  • Anodised aluminium material underneath cover
  • Spring steel material spring
  • Anodised aluminium material housing
  • 0.4BAR to 40BAR pressure regulation range
  • 5GC ambient temperature to 50GC ambient temperature
  • -10GC to 60GC storage temperature
  • Pneumatic connection g1 , port 1
  • Pneumatic connection g1/4 , port 11
  • Pneumatic connection g1 , port 2
  • Pneumatic connection g1 , port 3
