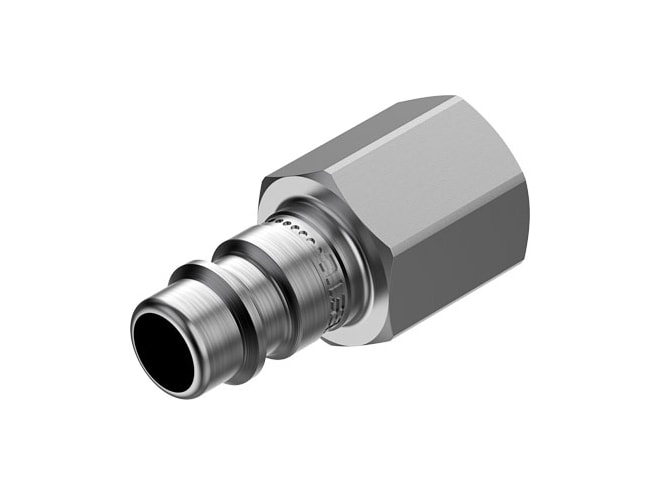

Festo NPHS-S6-M-G14F Quick Coupling Plug
$64.30
Part Numbers
- NPHS-S6-M-G14F
- 8059262
Highlights...
- NPHS-S6-M-G14F
- By Festo
- FREE Shipping on orders of $1,000 or more
-
Manufacturer has 542 in stock.Additional 2-3 days to process. Call for expedite options.
Overview
Features
- 7.85MM nominal size
- -0.095MPA operating pressure complete temperature range
- 1.2MPA operating pressure complete temperature range
- -0.95BAR operating pressure complete temperature range
- 12BAR operating pressure complete temperature range
- -13.775PSI operating pressure complete temperature range
- 174PSI operating pressure complete temperature range
- 1002L2 standard nominal flow rate
- 1950L2 standard nominal flow rate
- 1086.2L2 nominal flow rate standardised according to iSO 8778
- 2113.8L2 nominal flow rate standardised according to iSO 8778
- Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
- Lubricated operation possible note on operating and pilot medium
- 1 - Low corrosion stress corrosion resistance class cRC
- VDMA24364-B1/B2-L lABS (PWIS) conformity
- 28G product weight
- RoHS-compliant note on materials
- Galvanised steel information on materials
- -10GC ambient temperature to 60GC ambient temperature
- Pneumatic connection female thread G1/4 , port 1
This product is an accessory for the following products:
