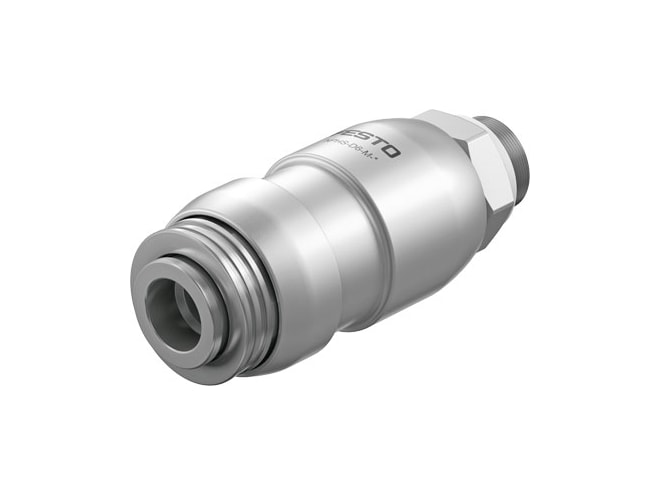

Festo NPHS-D6-M-G14 Quick Coupling Socket

Features

• 8.2MM nominal size
• -0.095MPA operating pressure complete temperature range
• 1.2MPA operating pressure complete temperature range
• -0.95BAR operating pressure complete temperature range
• 12BAR operating pressure complete temperature range
• -13.775PSI operating pressure complete temperature range
• 174PSI operating pressure complete temperature range
• 1750L2 standard nominal flow rate
• 1833L2 standard nominal flow rate
• 1897L2 nominal flow rate standardised according to iSO 8778
• 1987L2 nominal flow rate standardised according to iSO 8778
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Lubricated operation possible note on operating and pilot medium
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 7NM nominal torque
• ± 20% tolerance for nominal tightening torque
• 173G product weight
• RoHS-compliant note on materials
• NBR material seals
• High-alloy stainless steel material spring
• Brass, nickel-plated material housing
• Aluminium material thread seal
• HNBR material thread seal
• Nickel-plated brass material thread piece
• Wrought aluminium alloy material sleeve
• Colourless anodised material sleeve
• Brass material of inner raceway
• High-alloy stainless steel material ball
• Nickel-plated brass material releasing sleeve
• -20GC ambient temperature to 80GC ambient temperature
• Pneumatic connection male thread G1/4 , port 1
