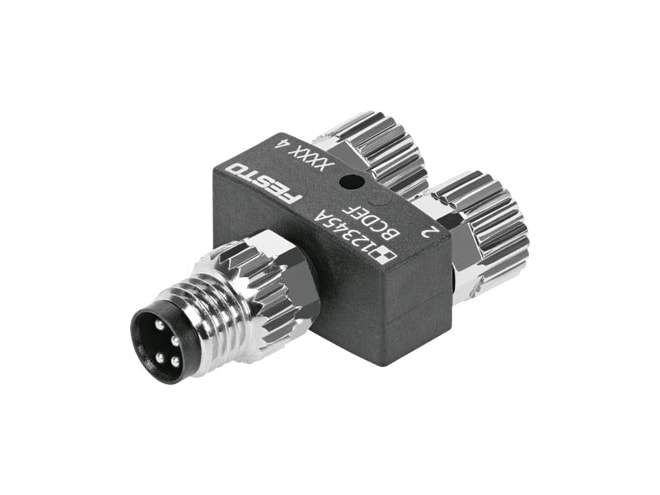

Festo NEDY-L2R1-V1-M8G3-N-M8G4 Distributor

Name: Festo NEDY-L2R1-V1-M8G3-N-M8G4 Distributor
Price: 23.16 USD
Availability: InStock

Signal distributor with Socket M8x1 A-coded, EN 61076-2-104 on field device side, and Plug M8x1 A-coded, EN 61076-2-104 on the controller side. Display: None. Cable (left, right): None, None. View other configurations.

$23.16

Part Numbers

NEDY-L2R1-V1-M8G3-N-M8G4
8005312

Highlights...

NEDY-L2R1-V1-M8G3-N-M8G4
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 118 in stock.
Ships in 3-4 business days. Call for expedite options.

Features

EN 61076-2-104 based on standard
Y-distributor without cable design
Y type distrubution
Without inscription label holder cable designation
Via through-hole for M2 screw type of mounting
With accessories type of mounting
10.5G product weight
Controller side electrical connection 1, function
Round electrical connection 1, design
Plugs electrical connection 1, connection type
Straight electrical connection 1, cable outlet
M8x1, A-coded, to EN 61076-2-104 electrical connection 1, connector system
4 electrical connection 1, number of connections/cores
4 electrical connection 1, used connections/cores
991171 electrical connection 1, connection pattern
Field device side electrical connection 2, function
Round electrical connection 2, design
2x socket electrical connection 2, connection type
Straight electrical connection 2, cable outlet
M8x1, A-coded to EN 61076-2-104 electrical connection 2, connector system
3 electrical connection 2, number of connections/cores
3 electrical connection 2, used connections/cores
991871 electrical connection 2, connection pattern
0V operational voltage range dC
30V operational voltage range dC
0V operational voltage range aC
30V operational voltage range aC
3A current rating at 40° c
0.8KV immunity to surge
IP65 degree of protection
IP68 degree of protection
IP69K degree of protection
-25GC ambient temperature
85GC ambient temperature
-10 - 40°C with mounting via through-hole note on ambient temperature
VDMA24364-B2-L lABS (PWIS) conformity
RoHS-compliant note on materials
Free of halogen note on materials
Free of phosphoric acid ester note on materials
3 pollution degree
2 - Moderate corrosion stress corrosion resistance class cRC
TPE-U(PUR) material cable sheath
Grey cable sheath colour
PC material housing
TPE-U(PUR) material housing
Black housing colour
Nickel-plated brass material union nut
NBR material seals
Gold-plated copper alloy material electrical contact
Nickel-plated brass material threaded sleeve
-25GC to 85GC storage temperature

View other configurations.

Spec Sheets

Festo NEDY-L2R1-V1-M8G3-N-M8G4 Distributor Datasheet (99 KB)

Other

Festo NEDY-L2R1-V1-M8G3-N-M8G4 Distributor CAD Diagram (1.0 MB)
