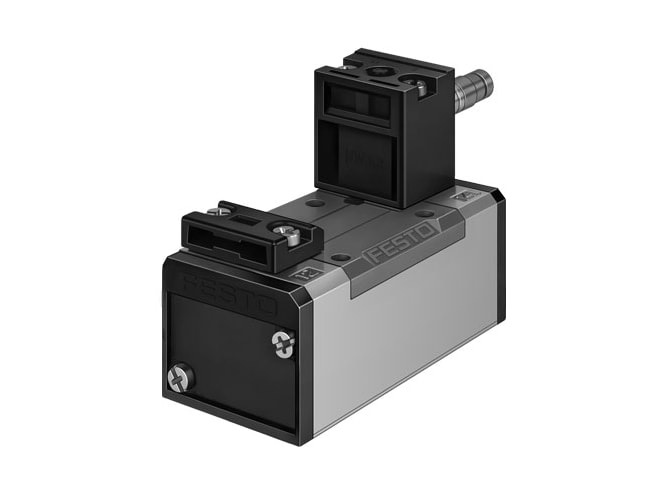

Festo MN1H-5/2-D-1-C Solenoid Valve

Retired products cannot be ordered
This product is being discontinued, please contact us for a replacement
Part Numbers
  • MN1H-5/2-D-1-C
  • 159688
Highlights...

Features

  • 5/2-way, monostable valve function
  • Electric type of actuation
  • 42MM construction width
  • 1200L2 standard nominal flow rate
  • Piston gate valve design
  • Pneumatic spring type of reset
  • C UL us - Recognized (OL) approval
  • See certificate maritime classification
  • IP65 degree of protection
  • 8MM nominal size
  • 43MM grid dimension
  • With flow control option exhaust-air function
  • Soft sealing principle
  • Optional mounting position
  • ISO 5599-1 conforms to standard
  • Detenting via accessory manual override
  • Non-detenting manual override
  • 151 iSO code
  • Pilot actuated type of piloting
  • Internal pilot air supply
  • Non-reversible flow direction
  • 991049 symbol
  • Overlap lap
  • 32MS switching time off
  • 23MS switching time on
  • 3700MIS max. positive test pulse with 0 signal
  • 4600MIS max. negative test pulse with 1 signal
  • See solenoid coil, to be ordered separately characteristic coil data
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 vibration resistance
  • Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • -5GC media temperature
  • 50GC media temperature
  • 85DBA sound pressure level
  • Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
  • 450G product weight
  • Via N1 coil, to be ordered separately electrical connection
  • On sub-base type of mounting
  • With through-hole type of mounting
  • Sub-base size 1 to ISO 5599-1 pilot air port 12
  • Sub-base size 1 to ISO 5599-1 pilot air port 14
  • RoHS-compliant note on materials
  • HNBR material seals
  • NBR material seals
  • Die-cast aluminium material housing
  • 2BAR to 10BAR operating pressure
  • -5GC ambient temperature to 50GC ambient temperature
  • Pneumatic connection sub-base size 1 to ISO 5599-1 , port 1
  • Pneumatic connection sub-base size 1 to ISO 5599-1 , port 2
  • Pneumatic connection sub-base size 1 to ISO 5599-1 , port 3
  • Pneumatic connection sub-base size 1 to ISO 5599-1 , port 4
  • Pneumatic connection sub-base size 1 to ISO 5599-1 , port 5
