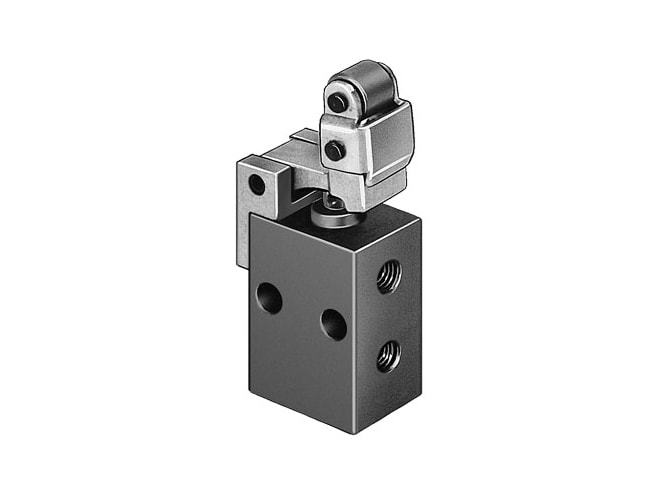

Festo L-3-M5 Toggle Lever Valve With Idle Return

Toggle lever valve with idle return with M5 connection and 3/2, usually closed, monostable valve function. View other configurations.

$113.69
Part Numbers
  • L-3-M5
  • 3628
Highlights...

Features

  • 3/2-way, closed, monostable valve function
  • Mechanical type of actuation
  • 80L2 standard nominal flow rate
  • Poppet seat design
  • 2MM nominal size
  • Direct type of piloting
  • 991096 symbol
  • Compressed air to ISO 8573-1:2010 [-:-:-] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 16.5N actuating force
  • 43G product weight
  • With through-hole type of mounting
  • NBR material seals
  • Die-cast zinc material housing
  • -0.95BAR to 8BAR operating pressure
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection m5 , port 1
  • Pneumatic connection m5 , port 2
