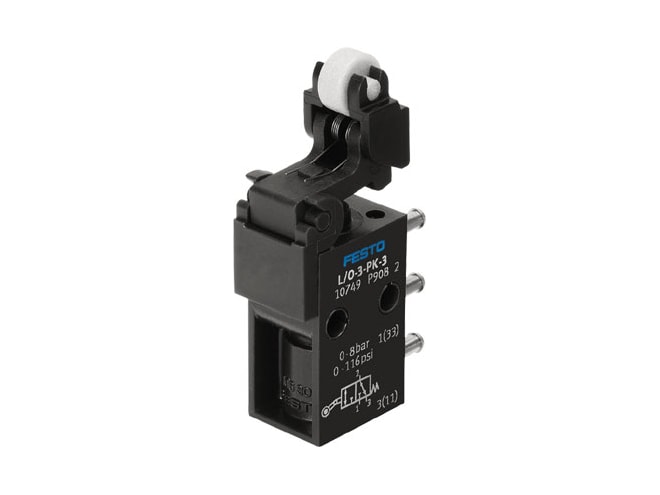

Festo L/O-3-PK-3 Toggle Lever Valve With Idle Return

View other configurations.

$66.27
Part Numbers
  • L/O-3-PK-3
  • 10749
Highlights...

Features

  • 3/2-way, monostable, open/closed valve function
  • Mechanical type of actuation
  • 80L2 standard nominal flow rate
  • Piston seat design
  • 2.5MM nominal size
  • Direct type of piloting
  • 991833 symbol
  • Compressed air to ISO 8573-1:2010 [-:-:-] operating medium
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 10N actuating force, normally closed
  • 13N actuating force, normally open
  • 19G product weight
  • With through-hole type of mounting
  • NBR material seals
  • POM material housing
  • 0BAR to 8BAR operating pressure
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection pK-3 , port 1
  • Pneumatic connection pK-3 , port 2
  • Pneumatic connection pK-3 , port 3
