$19.64

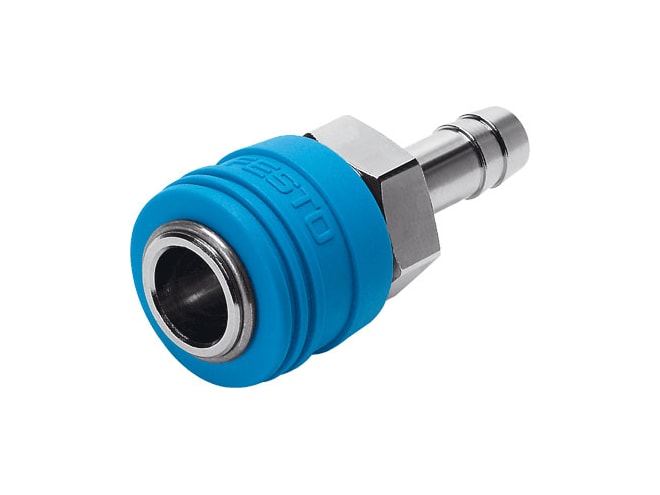

  • KD4-N-9
  • 531641

Overview

Features

  • 7.4MM nominal size
  • -0.095MPA operating pressure complete temperature range
  • 1.2MPA operating pressure complete temperature range
  • -0.95BAR operating pressure complete temperature range
  • 12BAR operating pressure complete temperature range
  • -13.775PSI operating pressure complete temperature range
  • 174PSI operating pressure complete temperature range
  • 810L2 standard nominal flow rate
  • 1152L2 standard nominal flow rate
  • 878L2 nominal flow rate standardised according to iSO 8778
  • 1248.8L2 nominal flow rate standardised according to iSO 8778
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 57G product weight
  • RoHS-compliant note on materials
  • NBR material seals
  • High-alloy stainless steel material spring
  • Brass, nickel-plated material housing
  • Brass material of inner raceway
  • High-alloy stainless steel material snap ring
  • High-alloy stainless steel material pins
  • Brass valve body material
  • PP material releasing sleeve
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection barbed hose fitting 9 mm , port 1
View other configurations.
