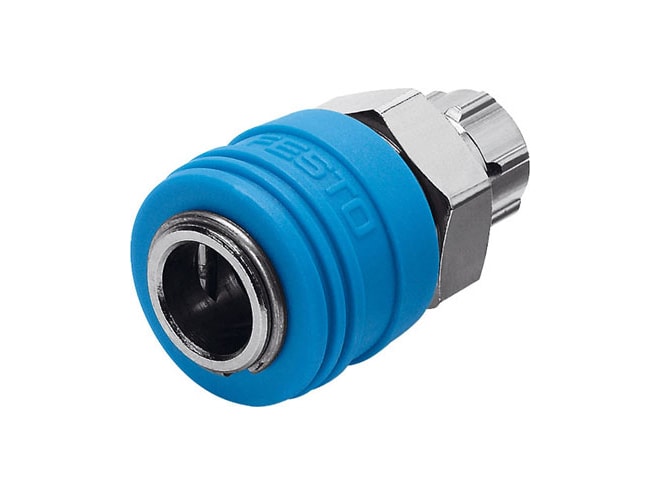

Festo KD4-CK-9 Quick Coupling Socket
Size 4 coupling socket. Quick connector CK connection, 9mm. Standard connection design. View other configurations.
$21.94
Part Numbers
- KD4-CK-9
- 531640
Highlights...
- KD4-CK-9
- By Festo
- FREE Shipping on orders of $1,000 or more
Overview
Features
- 7.4MM nominal size
- -0.095MPA operating pressure complete temperature range
- 1.2MPA operating pressure complete temperature range
- -0.95BAR operating pressure complete temperature range
- 12BAR operating pressure complete temperature range
- -13.775PSI operating pressure complete temperature range
- 174PSI operating pressure complete temperature range
- 261L2 standard nominal flow rate
- 1116L2 standard nominal flow rate
- 282.9L2 nominal flow rate standardised according to iSO 8778
- 1209.7L2 nominal flow rate standardised according to iSO 8778
- Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
- Lubricated operation possible note on operating and pilot medium
- 1 - Low corrosion stress corrosion resistance class cRC
- VDMA24364-B1/B2-L lABS (PWIS) conformity
- 71G product weight
- Nickel-plated wrought aluminium alloy material union nut
- RoHS-compliant note on materials
- NBR material seals
- High-alloy stainless steel material spring
- Brass, nickel-plated material housing
- Brass material of inner raceway
- High-alloy stainless steel material snap ring
- High-alloy stainless steel material pins
- Brass valve body material
- PP material releasing sleeve
- -10GC ambient temperature to 60GC ambient temperature
- Pneumatic connection for barbed fitting inside diameter of 9 mm with union nut , port 1
