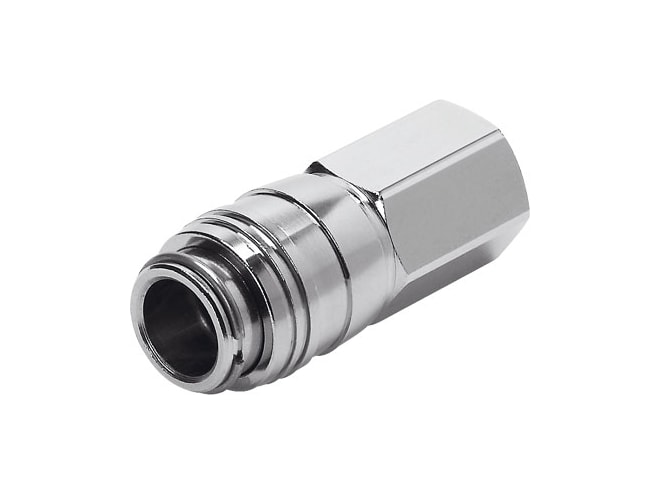

Festo KD3-1/8-I Quick Coupling Socket

Size 3 coupling socket. Thread connection, 1/8. Inside connection design. View other configurations.

$21.22
Part Numbers
  • KD3-1/8-I
  • 531627
Highlights...

Features

  • 5MM nominal size
  • -0.095MPA operating pressure complete temperature range
  • 1.2MPA operating pressure complete temperature range
  • -0.95BAR operating pressure complete temperature range
  • 12BAR operating pressure complete temperature range
  • -13.775PSI operating pressure complete temperature range
  • 174PSI operating pressure complete temperature range
  • 185L2 standard nominal flow rate
  • 603L2 standard nominal flow rate
  • 200.5L2 nominal flow rate standardised according to iSO 8778
  • 653.7L2 nominal flow rate standardised according to iSO 8778
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 5NM nominal torque
  • ± 15% tolerance for nominal tightening torque
  • 32G product weight
  • RoHS-compliant note on materials
  • NBR material seals
  • High-alloy stainless steel material spring
  • Brass, nickel-plated material housing
  • Nickel-plated brass material thread piece
  • High-alloy stainless steel material ball
  • High-alloy stainless steel material snap ring
  • Brass valve body material
  • Nickel-plated brass material releasing sleeve
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection female thread G1/8 , port 1
