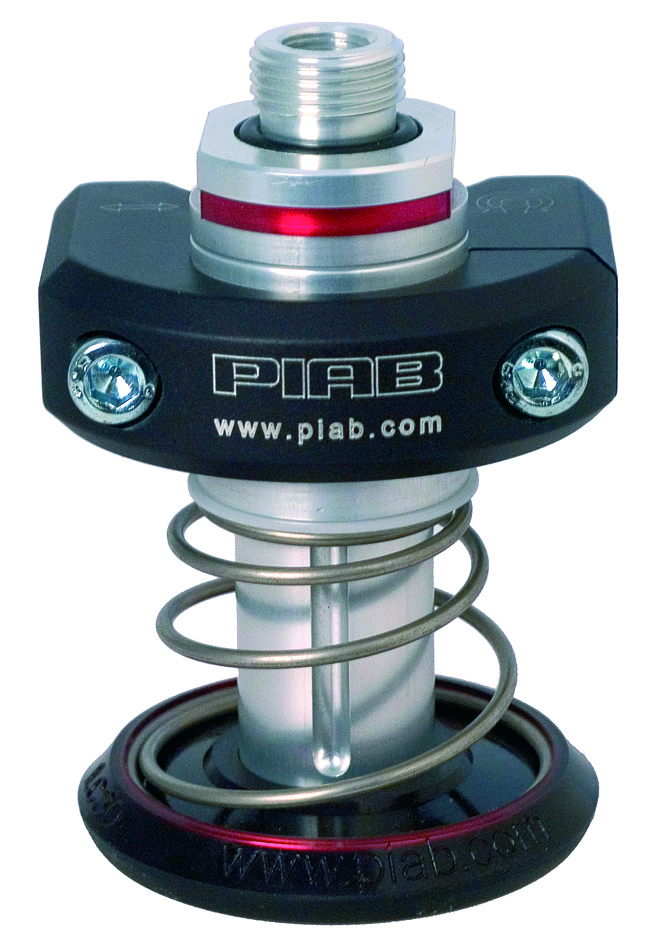

Piab Level Compensator LC30

Adjust differences in levels, for example on lifting devices with several suction cups. There is then less demand for exact positioning of vacuum handling device. Level compensators will also provides a certain degree of shock and vibration absorption.

$114.01
Part Number
  • 01.11.552
Highlights...

Features

  • Tailor made for the Vacuum Gripper System, VGS™, but can also be used together with other Piab products.
  • Developed for use with standard profile systems.
  • Easy installation with the option of fine adjustments and positioning of the suction cup.
  • Non-rotational for use with, for example, oval suction cups. Can easily be made rotational.
  • Quiet and reliable level compensation with load protection and shock absorbtion.
  • Material: Nitrile (NBR);Al;PA;POM;SS;PUR
  • Temperature: 50 °F
  • Dimensions: 0.48 lb. (weight)
