Piab Atmospheric quick release valve - AQR

Our suction cup valves are a group of products that serve to save energy in various applications at the suction cup.

$48.70
Part Number
  • 01.11.236
Highlights...

Features

  • Equalizes pressure in vacuum gripper systems to provide fast release of product.
  • Consumes no additional compressed air.
  • ON/OFF activated simultaneously with the ejector.
  • No additional controls required — use a single 3/2 control valve for the ejector and AQR.
  • Material: Nitrile (NBR);CuZn;Polyurethane (PU)
  • Temperature: 50 °F

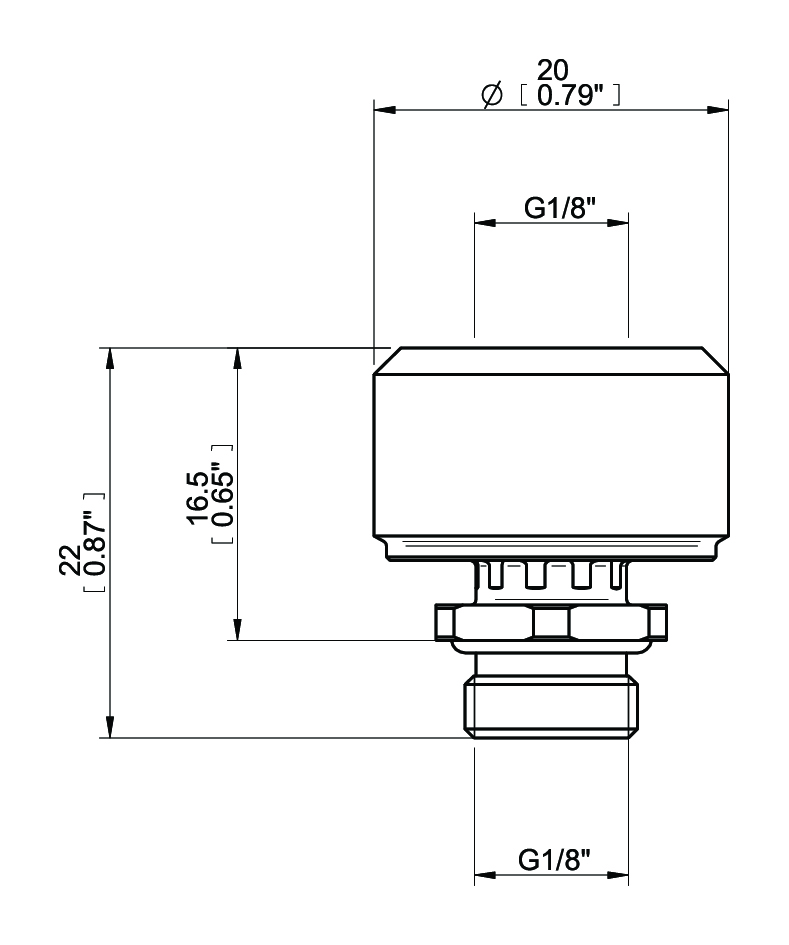

  • Dimensions: 0.87 in. (depth) x 0.79 in. (width) x 0.65 in. (length), 0.05 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
