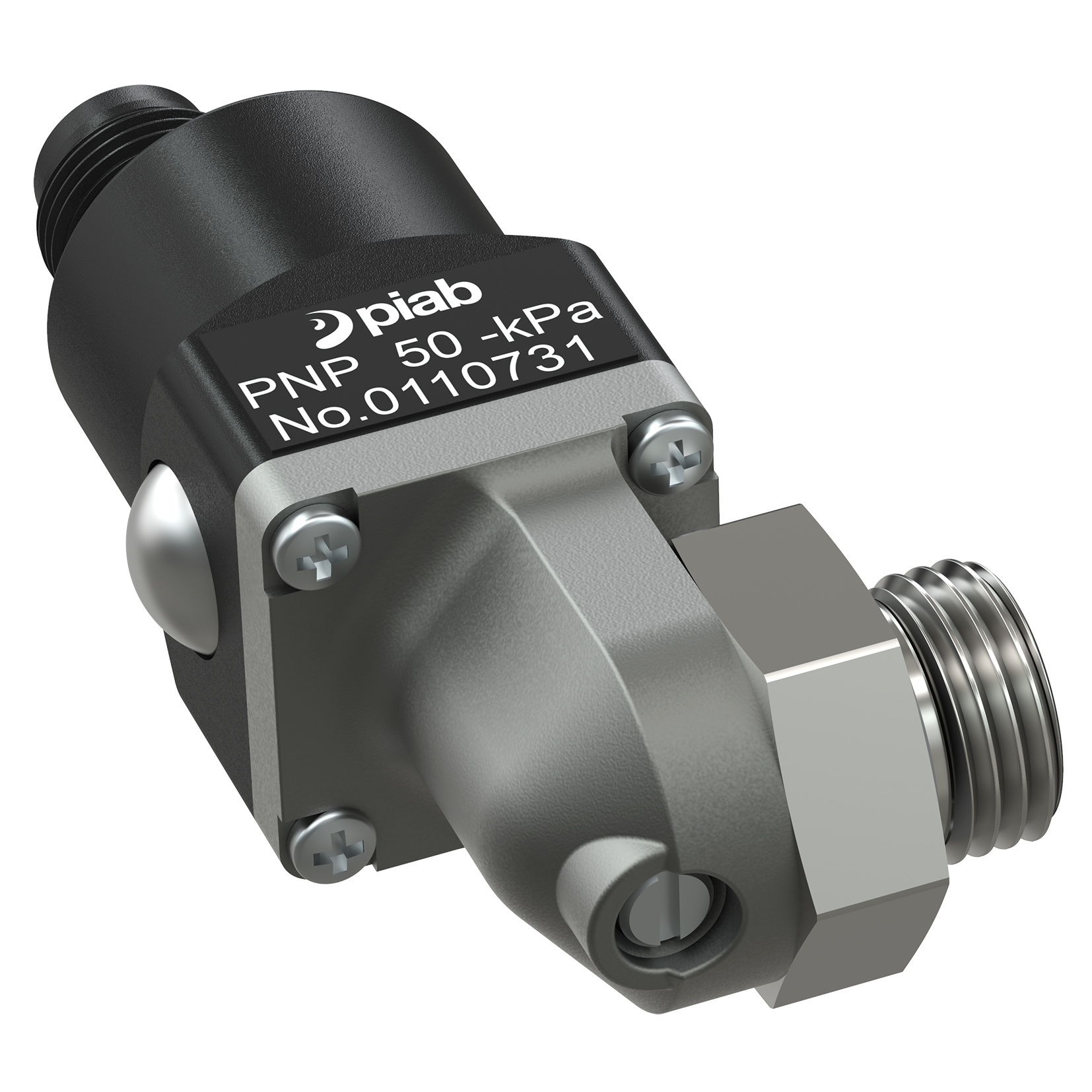

Piab Vacuum Switch VS4118 15 -inHg, M8 PNP/NPN NO/NC

Our line includes inductive universal, electro-mechanical and pneumatic vacuum switches that are pre-set or adjustable.

$111.04
Part Number
  • 01.10.731
Highlights...

Features

  • Pre-set vacuum switch with digital output.
  • Durable and compact design with G1/8" 90° angle swivel connection for easy installation.
  • VS4118 hardwired enables PNP NO/NC or NPN NO/NC functionality.
  • VS4128 suitable for plug in I/Os.  Available in PNP NO or NPN NP models.
  • Possible to connect several units serially with T-connectors to provide a common output (VS4128 PNP).
  • Material: Al;CuZn;PA;SS
  • Temperature: -13 °F

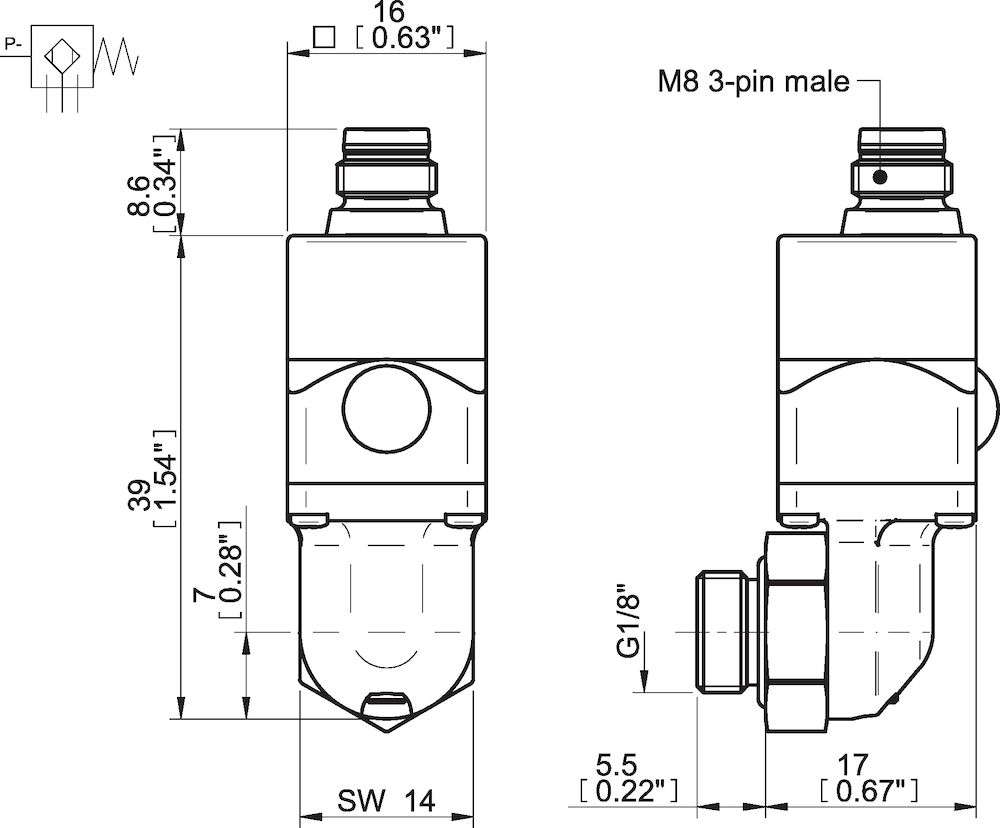

  • Dimensions: 0.63 in. (depth) x 1.87 in. (width) x 0.67 in. (length), 0.05 lb. (weight)
  • Feed Pressure (Max): 0.6 MPa
