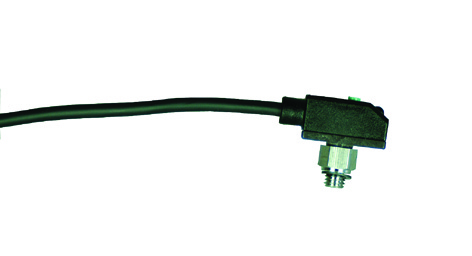

Piab Vacuum switch NPN M5

Our line includes inductive universal, electro-mechanical and pneumatic vacuum switches that are pre-set or adjustable.

$217.71
Part Number
  • 01.10.359
Highlights...

Features

  • Converts an adjusted vacuum level to a digital output signal.
  • Absolute pressure switch (NO) that functions as a NC switch in vacuum applications.
  • Very low weight and small format with M5 90° angle swivel connection.
  • Integrated cable with open ends included.
  • Material: PC;SS
  • Temperature: 14 °F

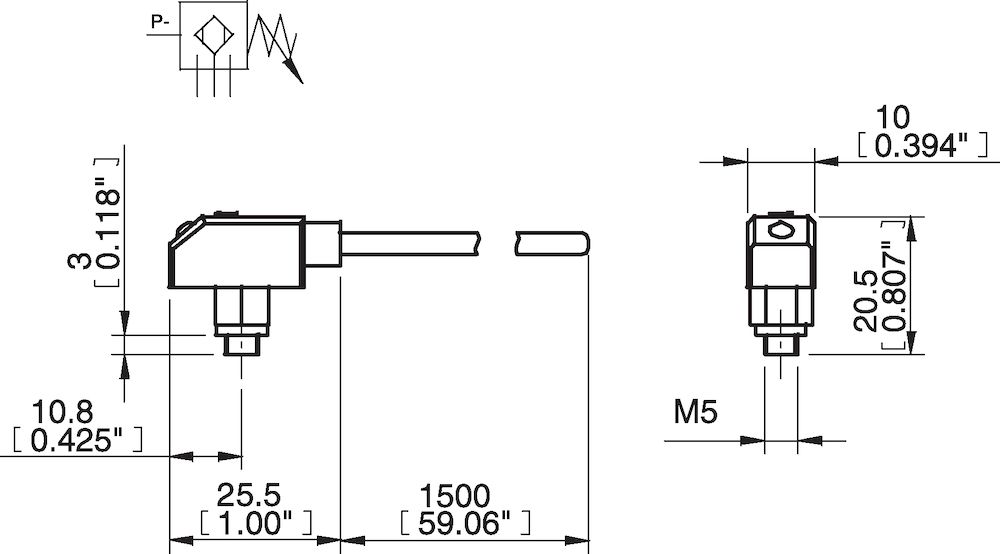

  • Dimensions: 0.39 in. (depth) x 1.02 in. (width) x 0.71 in. (length), 0.01 lb. (weight)
  • Feed Pressure (Max): 0.6 MPa
